Steamist SMP-30
Closeout Sale! SM Plus 30kW Steam Generator 240V/1PH
Closeout Sale - SAVE 50% off MSRP! The Steamist SMP-30 is a 30kW steam shower generator engineered for large home steam baths and day spa steam rooms from 1,101 to 1,350 adjusted cubic feet (ACF). SM Plus Series Generators provide you with pleasant and consistent steam bathing experiences. Full warranty!
Operating control sold separately.
The Steamist SMP-30 is a 30kW steam shower generator engineered for large home steam baths and day spa steam rooms from 1101 to 1350 adjusted cubic feet (ACF). As a member of the Steamist Plus Series Generators, the Steamist SMP-30 provides homeowners with pleasant and consistent steam bathing experiences.
Durably constructed of corrosion-resistant stainless-steel, the SMP-30 provides years of maintenance-free operation. This generator is equipped with professional grade parts and heating elements to ensure the optimal performance of the unit. The SMP-30 steam generator features SteadySteam technology to maintain your temperature preference in each bathing session.
The compact design of the generator allows the unit to be installed conveniently out of site. Typical installation locations include vanities, closets, insulated attics, and basements.

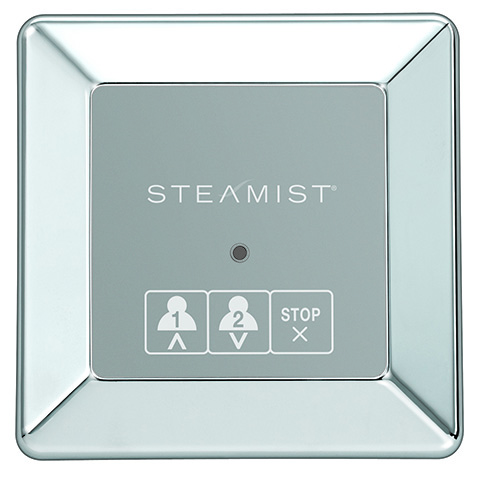

Select the Steamist operating control option with features that best suit your bathing preferences. Steamist control or control package is required for operation.

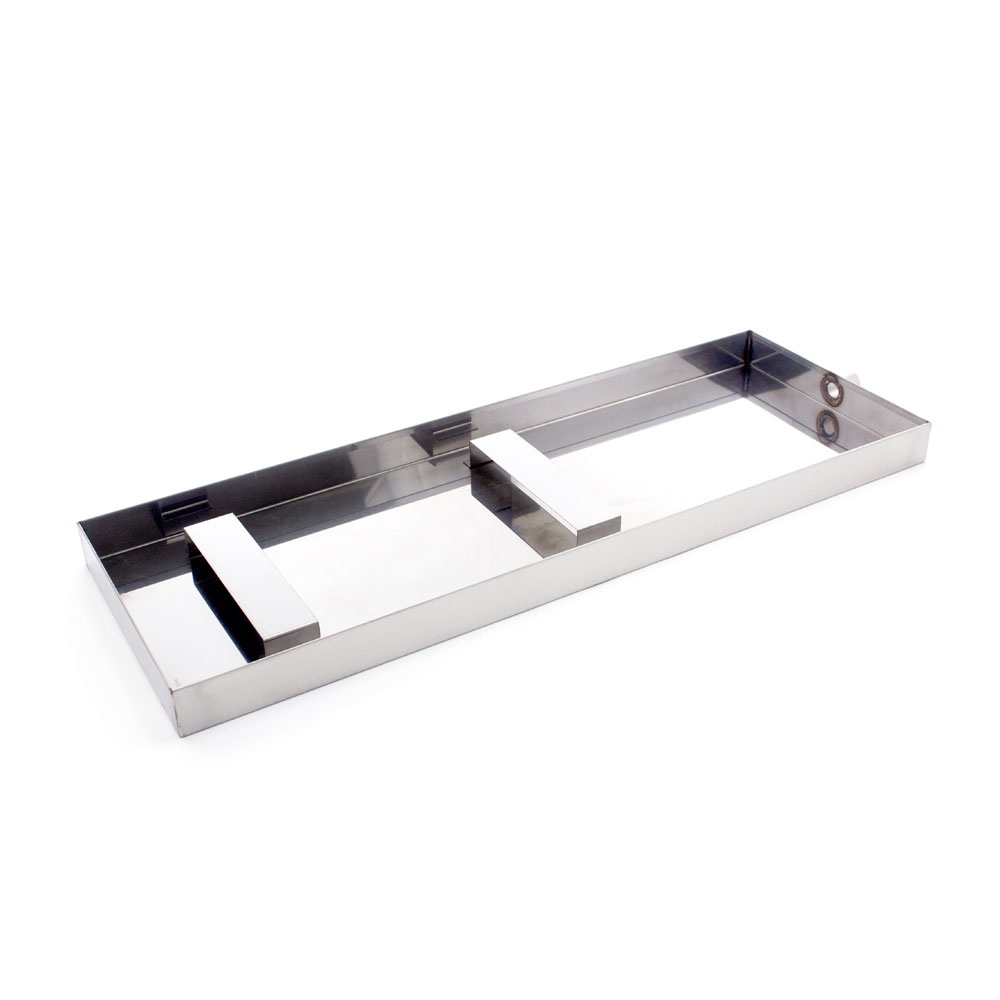

We highly recommend the Steamist Auto Drain Valve to help prevent harmful mineral buildup on the heating elements and reservoir, ensuring the longevity of the generator. The drain valve automatically drains the steam shower system after the water cools. For added convenience, the Auto Drain Valve may be used with the Steamist Generator Drain Pan.
The Steamist SMP-30 carries a limited lifetime warranty and is fully serviceable. All Steamist SM Plus Residential Steam Generators are UL and CUL listed for unmatched quality and safety.
- For steam baths sized from 1101 to 1350 adjusted cubic feet
- Available in 240V
- Stainless steel tank
- SteadySteam technology with 3-stage, industrial grade heating element
- Modular "snap-in" control connections
- Durable electronic components
- Electronic water-level control system
- Low voltage safety control circuits
- Solid-state circuitry
- Selectable InstaMist technology standard
- Optional tandem operation (up to 4 generators)
- Operates with inside/outside shower, on/off, time/temperature controls
- Diagnostic LED displays
- Full port drain valve
- ASME safety valve
- UL 499
- UL/CUL listed
- 30kW Steam Bath Generator

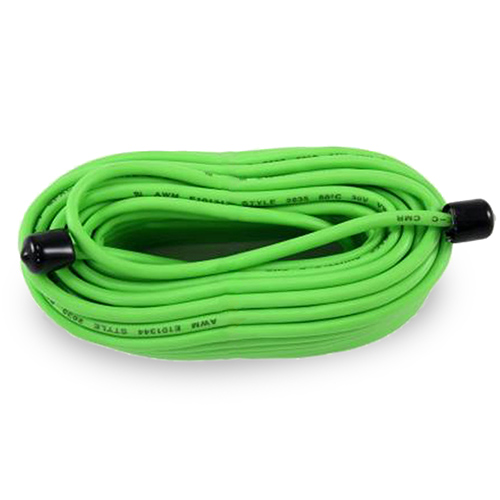

- 6-Pin, 6-Wire Control Cable, 35' Long with Snap-In Connector
- Installation and Operation Manual
- Limited Warranty
Model | SMP-30 |
---|---|
Minimum Adjusted Cubic Feet | 1101 |
Maximum Adjusted Cubic Feet | 1350 |
Kilowatt Rating | 30kW |
Water Supply Connection | 3/8" Compression Connection |
Generator Steam Line Connection | 3/4" NPT |
Steam Head Connection | 3/4" NPT |
Drain Connection | 1/2' NPT |
Safety Relief Valve Connection | 3/4' NPT |
Safety Relief Valve PSIG | 15 PSIG |
Control 'Rough In' Cut Out | 1-1/2" Diameter |
Generator Control Connection | 6-Pin, Snap-In Connector |
Generator Control Cable | 35', 6-Conductor, 22 AWG, Shielded Cable |
Width | 19" |
Depth | 11.25" |
Height | 17" |
Shipping Weight | 60 lbs |

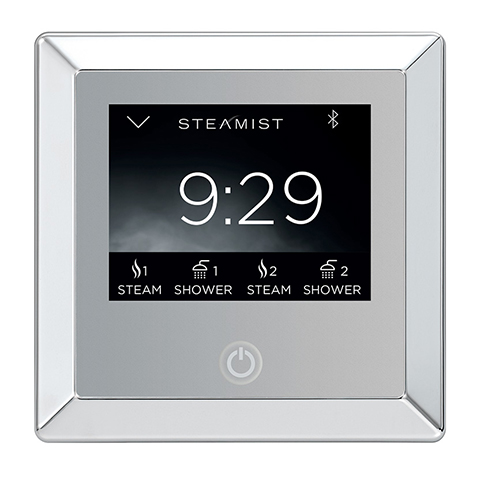

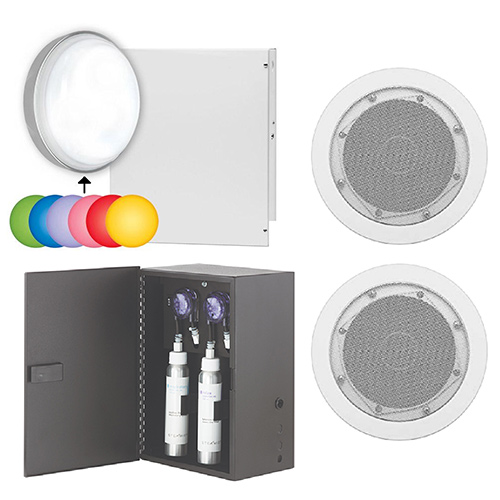

The TSC-450 Control Package is compatible with the Steamist TSG and SM Plus Steam Generators and can operate all Total Sense Spa options.
