Bathology Spectrum 210
Color Bathing LED Lighting System, Single Zone
Rediscover Bathing and create a multi-sensory experience in your steam shower with intense chromotherapy in-shower lighting from Bathology.
The Spectrum 210 Color Bathing LED Lighting System delivers mood-setting ambiance and visual clarity right where it's needed.
This water-safe lighting system features four digitally controlled LED lights that can be located in any shower, steam bath, or bathing space. Their low-profile, flush-mounted design enables them to be installed in convenient space-defining locations, while providing color bathing options to satisfy every mood.
Each light showcases color bathing effects within its radius such as swirling mist, shimmering water, falling droplets, or rushing falls. Consequently, the more lights installed, the greater the impact on the bathing environment. Color selections of Aqua, Blue, Magenta, Red, Orange, Yellow, Green, and White are available individually, or, consider the Rainbow mode which sequences all colors for a soothing color bathing effect.
The Spectrum 210 Color Bathing System comes complete with everything necessary to create a memorable color bathing experience. Four LED, low-voltage, long-lasting lights, with the option to expand to ten, are controlled by a slim-profile 2" diameter switch. This in-shower switch features a soft-touch keypad, with on/off, mode and cycle buttons, status indicator light, and 20 minute timer function, allowing for set it and forget it convenience.
NOTE: These lights are not intended as primary, task-based light sources, but rather to accent various environment elements such as water features, niches, and benching while creating an incredible ambiance-filled visual experience.
Bathing Enthusiasts! Send us your bathing area drawings. We welcome the opportunity to specify a color bathing system and layout that will exceed your expectations and change your life! Call us at 800-707-2862 or email us at ProjectCoordinator@BathingBrands.com and a bathing specialist will be excited to assist you.
- In-shower use
- 10-Light capacity
- Pre-programmed light cycles
- 20-Minute off-delay
- Soft-Touch keypad
- Low-voltage operation (5VDC)
- Water-safe materials
- In-shower convenience
- Set it and forget it
- Safe operation
- 20-Minute internal electronic timer
- Flush-mounted, low-profile design
- 4 LED, Polished Chrome or Brushed Nickel trim
- 8 'O' rings
- 4 Light cables
- Soft-Touch Light Switch, 2-1/32” diameter x 1-5/16” deep, White, 5VDC, Polished Chrome or Brushed Nickel trim
- Power supply module with Nema male plug, 120VAC/60HZ, 15 AMP
- 25’ Light extension cable
- 25’ Soft-Touch Switch cable with coupler
- 2 Plastic wall anchors
- 2 Stainless steel screws, #6
- Installation and operation manual
Model | Spectrum 210 |
---|
Switch | |
---|---|
Type | Flush-Mounted |
Voltage | 5V DC |
Diameter | 2-1/32" |
Trim Depth | 3/16" |
Trim Finish | Polished Chrome or Brushed Nickel |
Body Diameter | 1-17/32" |
Body Depth | 1-5/16 |
" Rough-In" Cut-Out | 1-1/2" Diameter |
Time Circuit | 20-Minute Off Delay |
Maximum Wall Material Thickness | 2-1/2" |
Power Supply | |
---|---|
Electrical | 120VAC, 15 AMPS (0.155 A @ 120 Vac) |
Length | 6-1/8" |
Width | 4-1/4" |
Height | 2-18" |
Testing | CSA, Type 2 |
Shipping Weight | 9 lbs |

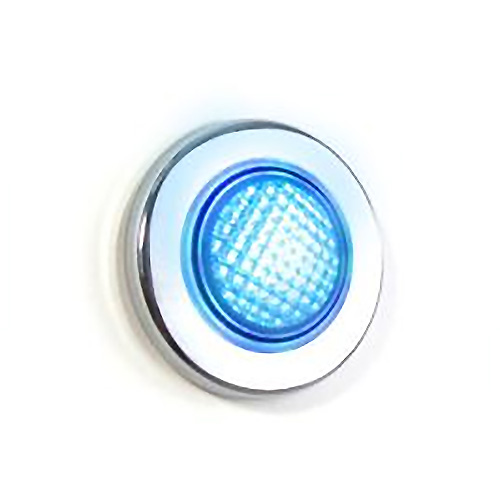

Brilliance Fixture | |
---|---|
Type | LED RGB |
Operating Voltage | 12V DC |
Maximum Input Current | 75 mA @ 12 Vdc |
LED | 9 LED Lights |
Beam Angle | Wide Angle |
Trim Finish | Polished Chrome or Brushed Nickel |
Housing Composition | ABS Plastic |
Lens | Clear, 1-11/64" Diameter |
Lens Composition | Optical Grade ABS |
"Rough-In" Cut-Out | 1-5/16" |
Trim Dimensions | 1-11/16" Diameter, 7/32" Profile |
Body Dimensions | 1-1/4" Diameter x 1-29/32" Deep |
Rating | N/A |
Certification | CSA / UL |
