Bathology Spectrum 310
Steam Room / In-Shower Light, Recessed, 5-1/2" Diameter Glass Lens
In-Shower lighting elegance engineered by Bathology! Recessed down-light that offers elegant illumination and blends with any décor, the Spectrum 310's all-glass trim and small scale appearance makes it the popular choice of architects, interior designers, and bathers. Engineered for steam showers.
THIS PRODUCT IS NO LONGER AVAILABLE. PLEASE SEE OUR INVENTORY OF LIGHTS.
Spectrum 310 is a low-voltage, recessed, ceiling-mounted light U.L. listed for wet locations. Utilizing a unique torsion spring mounting mechanism, the all frosted glass trim envelops a clear center lens to cast the ideal downward shine while providing a one-of-a-kind glow. This fixture is simply stunning.
Created for both remodeling and new construction, the Spectrum 310 housing comes pre-wired and ready to install. The electronic low-voltage transformer (120VAC/12VAC) is conveniently located atop the housing with an integral junction box.
Consider the Spectrum 310 for new construction or remodeling projects where insulation may be set-back a minimum of 3" from the housing, the maximum ceiling thickness does not exceed 1-1/4" and there exists 6" of installation height.
- Low-voltage operation (12VAC)
- U.L. listed, suitable for wet locations
- All-glass trim/lens
- Ceramic bi-pin socket with aluminum heat shield
- Dimmable with low voltage magnetic type dimmer
- Wet environment rated
- Universal appeal
- Both functional and ambient lighting
- Aesthetically pleasing trim and lens
- Easy re-lamping
- Housing, 4" Thermally protected 22 gauge galvanized steel with integral transformer, 10-1/2"L x 4-3/4"W x 5-1/4"H
- Trim, Frosted glass with clear glass lens, 5-1/2" diameter, 5/8" profile
- Lamp, 50 Watt, 12VAC, MR16, GU5.3 Base, clear flood halogen
- RTV silicone sealant, .5 ounce tube
- Installation template
- Installation and operation manual
| Model | Spectrum 310 |
|---|---|
| Fixture Type | Recessed Ceiling Downlight, Halogen |
| Dimming | With Low Voltage Magnetic Type Dimmer |
| Insulation Contact | Non-IC Rated |
| Minimum Installation Height | 6” |
| Maximum Ceiling Thickness | 1-1/4” |
| Rough-In Cut-Out | 4-3/8” |
| Housing Length | 10-1/2” |
| Housing Width | 4-3/4” |
| Housing Height | 5-1/4” |
| Transformer | 120VAC to 12VAC 50VA, Thermally Protected, Magnetic |
| Shipping Weight | 7 lbs |
| Testing | U.L. Listed, CSA, Suitable for Wet Locations |
| Trim | Etched Frosted Tempered Glass with Clear Center |
| Trim Profile | 5/8” |
| Trim Diameter | 5-1/2” |
| Lens | Clear Tempered Glass |
| Lamp | 50 Watt 12VAC MR16, GU5.3 Base, Halogen |
| Lamp Current | 4.25 Amps |
| Lamp Life | 3000 Hours |
| Lamp Socket | Bi-pin with Ceramic Insulator and Aluminum Heat Shield |
| Color Temperature | 3000K |
| Color Rendering Index | 100 Ra8 |
| Beam Angle | 36 Degree |
| Lumen | 850 |
Bathology puts shower light control where it’s needed most… inside the shower!

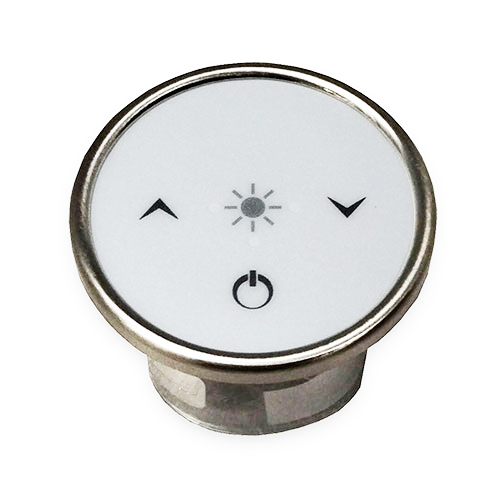

No more bathing with insufficient light…. the Bathology Spectrum 230 In-Shower Light Switch allows for on, off, and dimming control – all from the warming sprays of your shower.
