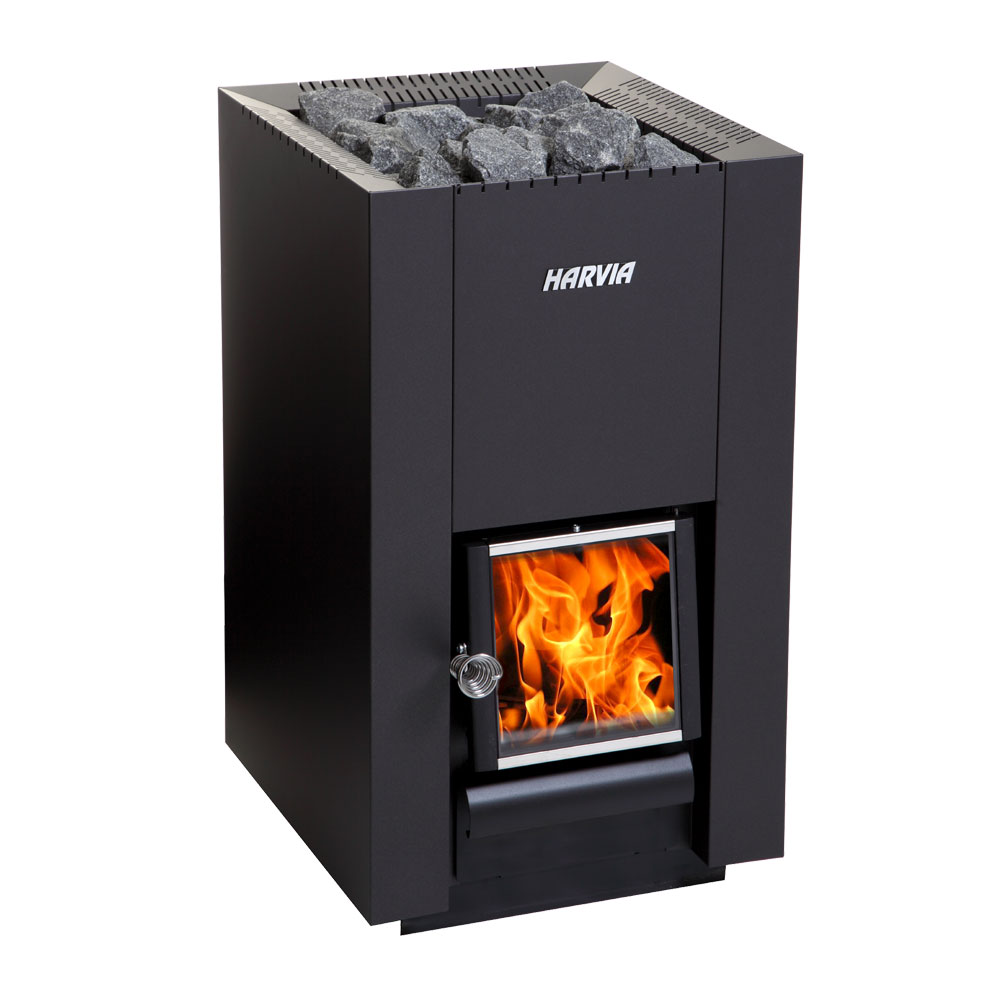

Harvia Linear 16 Black
Linear Series, 17.9 kW, Wood Sauna Stove
The Linear 16 wood burning heater is source of glowing heat for smaller saunas up to 459 cu. ft. Through the warm glow of the cast-iron glass door, with optional door direction, the fire enhances the sauna atmosphere. The fire chamber and combustion air channels of Harvia wood burning heaters are designed so that sauna warms quickly and the burning is cleaner.
Requires a maximum of 80 lbs of stones, sold separately.
See Shipping Tab
The Linear 16 wood-burning heater is the source of glowing heat for smaller saunas. The fire enhances the sauna atmosphere through the warm glow of the cast-iron glass door, with an optional door direction. The fire chamber and combustion air channels of Harvia wood-burning heaters are designed so that sauna warms quickly and the burning is cleaner. The wood-burning heaters meet the requirements for CE-marking.
The recommended size of the sauna room is 212 to 565 cu. ft., and the maximum amount of stones recommended is 80 lbs.
- Durable steel structure and replaceable internals ensure a long service life
- Wood burning
- 17.9 kW
- For sauna rooms from 212 to 565 cu. ft.
- Requires a maximum of 80 lbs of stones (2 boxes-AC3020)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Floor-vertical installation
- Cast-iron glass door and combustion air channels to provide a quicker and cleaner burn
- Sleek black design to fit any atmosphere
- Designed, engineered, and made in Finland
- Dimensions: 16.54" W (420mm) x 17.72" D (450mm) x 29.94" H (735mm)
- Heater
- Cast-iron glass door
- Installation and operating instructions
| Model | WK160C |
|---|---|
| Kilowatt Rating | 17.9 kW |
| Main material | Steel |
| Primary Fuel | Wood |
| Stone sizes | 10-15cm |
| Width | 16.54" W (420mm) |
| Depth | 17.72" D (450mm) |
| Height | 29.94" H (735mm) |
| Weight | 102.74 lbs (46.6 kg) |
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
Freight Quote Requests: email Customerservice@bathingbrands.com
Please include sauna heater model number and full shipping address.
Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
The Harvia AC3020 stones are 10-15 cm in size and designed for use with Harvia sauna heaters and stoves.Each natural stone is unique in shape and size, so we recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function. 44 lbs.
Only available with the purchase of a Harvia sauna heater or stove.
Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
All Harvia wood-burning sauna stoves are equipped with standard European exhaust piping that measures at 115mm (4.5"). This adapter is required for North American 155 mm (6") piping conversion.
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.
Sauna stove sold separately

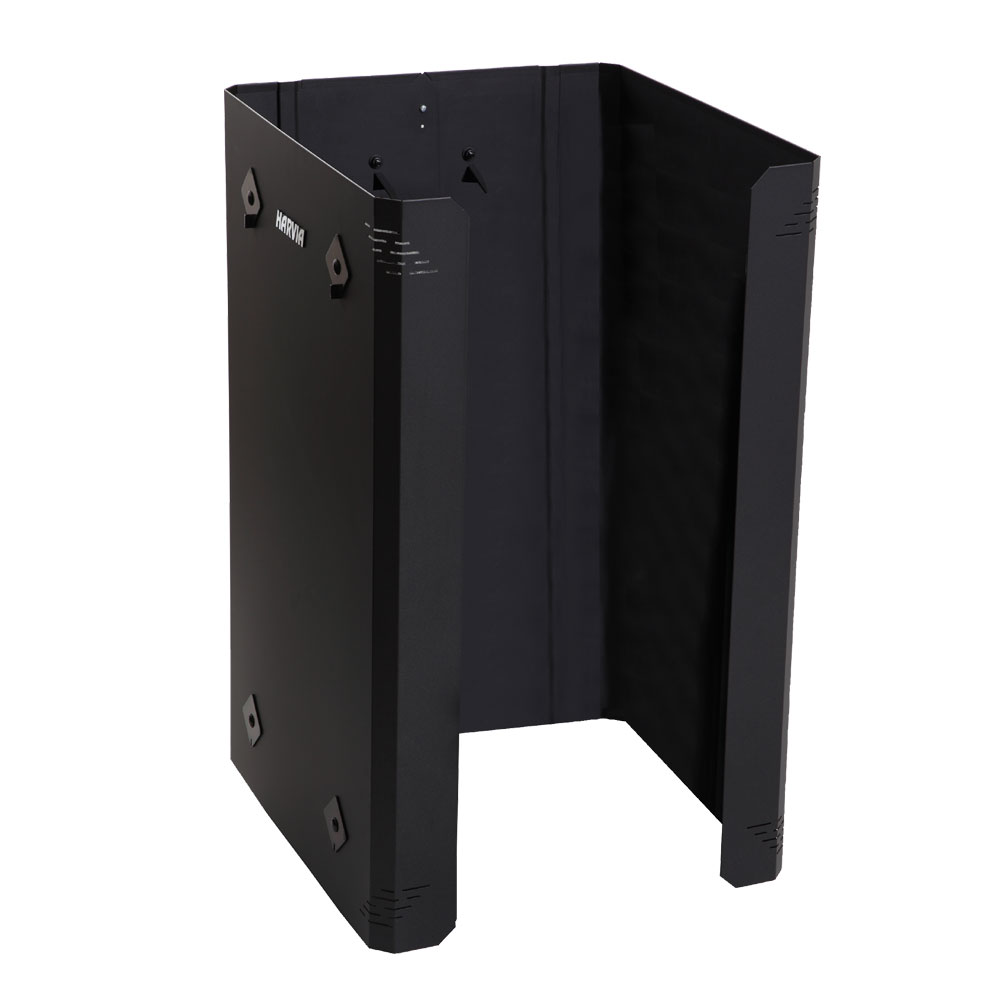

The Harvia protective sheath is designed and approved for wood-heated Harvia wood-burning heaters (Harvia 16/Linear 16). The protective shield reduces the safety distance to combustible materials. This features a steel material, with a black finish.
Made of aluminum-zinc coated steel, painted black the Harvia WL110 adds protection where you need it. The protective bedding is used when a fireplace or stove is installed onto a waterproofed tile or hardwood floor.
This chimney extension is made of a sleek black powder coated steel and can be installed both indoor and out. The inventive Harvia WHP500M steel chimney extension is designed to prevent movement caused by temperature changes.
This chimney extension is made of a stylish stainless steel and can be installed both indoor and out. The inventive Harvia WHP500 steel chimney extension is designed to prevent movement caused by temperature changes.
The inventive Harvia WHP1000M steel chimney extension is designed to prevent movement caused by temperature changes. This chimney extension is made of a sleek black powder coated steel and can be installed both indoor and out.
The inventive Harvia WHP1000 steel chimney extension is designed to prevent movement caused by temperature changes. This chimney extension is made of classic stainless steel and can be installed both indoor and out.
The Harvia WHP1500M Chimney Kit in Black Stainless Steel is the modern, yet simple solution to your sauna chimney needs. It withstands extensive changes in temperature and can be used with wood-burning sauna stoves, smaller fireplaces, and iron stoves in detached sauna buildings. Thanks to its intuitive design, this chimney can easily be extended. Designed to be used with slanted roof.
The Harvia WHP1500 Chimney Kit in Stainless Steel is the modern, yet simple solution to your sauna chimney needs. It withstands extensive changes in temperature and can be used with wood-burning sauna stoves, smaller fireplaces, and iron stoves in detached sauna buildings. Thanks to its intuitive design, this chimney can easily be extended. Designed to be used with slanted roof.
The Harvia WHP1000500M-PKG is everything you need for your sauna room chimney, including the chimney! This kit includes Harvia WHP1000500M black steel chimney and Harvia WHPASSYMM which is the assembly kit to put it all together.
The Harvia WHP1000500-PKG is everything you need for your sauna room chimney, including the chimney! This kit includes Harvia WHP1000500 stainless steel chimney and Harvia WHPASSYM which is the assembly kit to put it all together.
The Harvia Smoke Pipe WZ has a CE certification that ensures the safety of your stove. This 1m smoke pipe is compatible with all Harvia Sauna Stoves, except for the Harvia 50.
The Harvia WZ11550 smoke pipe is compatible with all Harvia wood-heated sauna wood burning heaters (except Harvia 50). The pipe is made of sleek stainless steel. CE certification means this product complies with all fire and operational safety requirements for peace of mind when it comes to safety.

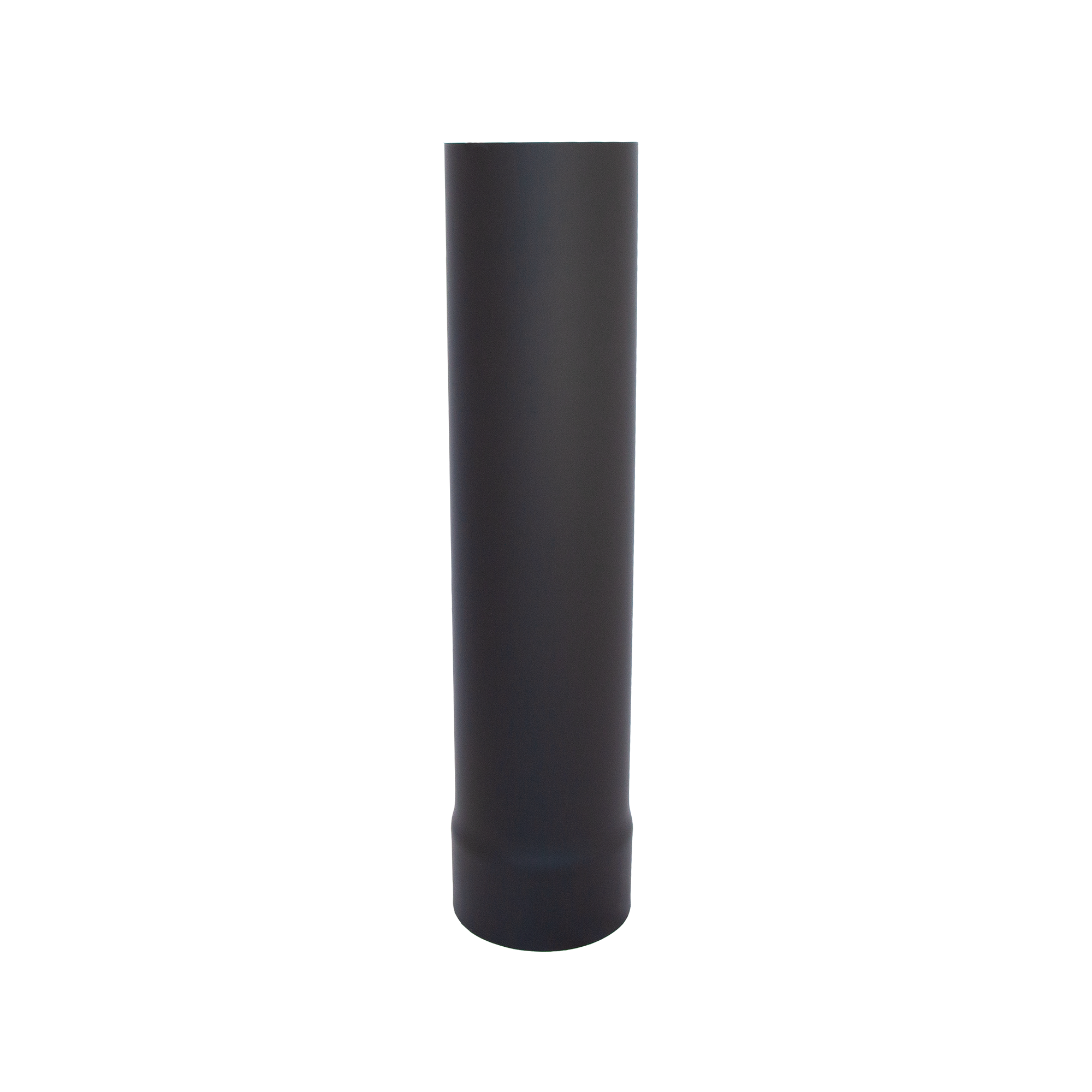

The Harvia WZ050M smoke pipe is compatible with all Harvia wood-heated sauna wood burning heaters (except Harvia 50). The pipe is made of black powder coated steel. CE certification means this product complies with all fire and operational safety requirements for peace of mind when it comes to safety.
The Harvia pipe model water heater is placed directly on top of the stove, and the tank holds 22 litres of water. The water heats up quickly, as the smoke pipe runs through the tank and acts as a wall inside it. The pipe model water heater is compatible with all wood-heated Harvia stoves (except the Harvia 50 stove).
- Compatible with large and small saunas
- Wall-Mounted Installation
- Consistent, balanced steam temperature
- 3 Different airflow speeds with adjustable ventilation grille
- Himalayan Salt gives added benefits to the skin, and respiratory
- UL-listed for safety
SAUNA HEATER SOLD SEPARATELY
- Compatible with large and small saunas
- Wall-Mounted Installation
- Consistent, balanced steam temperature
- 3 Different airflow speeds with adjustable ventilation grille
- Himalayan Salt gives added benefits to the skin, and respiratory
- UL-listed for safety
SAUNA HEATER SOLD SEPARATELY
- Compatible with large and small saunas
- Behind the Wall Installation
- Consistent, balanced steam temperature
- 3 Different airflow speeds with adjustable ventilation grille
- Himalayan Salt gives added benefits to the skin, and respiratory
- UL-listed for safety
SAUNA HEATER SOLD SEPARATELY
Available in black or white, this matching multi-functional sauna bucket and ladle set features a high-quality 1-gallon aluminum sauna bucket and matching ladle with bamboo handle. The ladle doubles as a convenient handle for the bucket and the grooves at the top of the bucket may be used to rest the ladle on between uses.
The beautiful shape and smooth texture of the AC4000 white sauna stones is exactly what make them the perfect decorative design feature for your sauna heater. The white sauna stones provide a softer, cleaner look to upgrade your sauna atmosphere. The Harvia AC4000 sauna stones are only to be used as a top layer above traditional stones, with a one box maximum per heater.
For decorative use only!
