Kohler K-28209
Anthem, Two-Port Digital Thermostatic Valve
Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.
Required items sold separately
Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.
- Digitally controlled thermostatic mixing valve.
- Antiscald protection.
- Built-in temperature and flow control.
- Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.
- Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet.
- Two independently controllable ½" outlets with brass tube connections.
- 1/2" inlets with brass tube connections
- Reinforced engineering-grade thermoplastic body.
- Mounts within standard 2" x 4" (38 x 102 mm) walls.
- Prewired with two-prong plug for connection to 120v GFCI receptacle.
- Digital Thermostatic Valve
- Filter Screens (2)
- Jumper
- Mounting Hardware
- Power Supply Unit
Model | K-28209 |
---|---|
Mount | Wall |
Material | Reinforced engineering-grade thermoplastic body |
Minimum Flow Rate | 0.9 gal/min |
Maximum Flow Rate | 9.5 gal/min |
Volts | 120V |
Amperage | 1.0 |
Width | 10-5/8" |
Depth | 9-1/16" |
Height | 3" |
PROP 65 Warning | Yes |

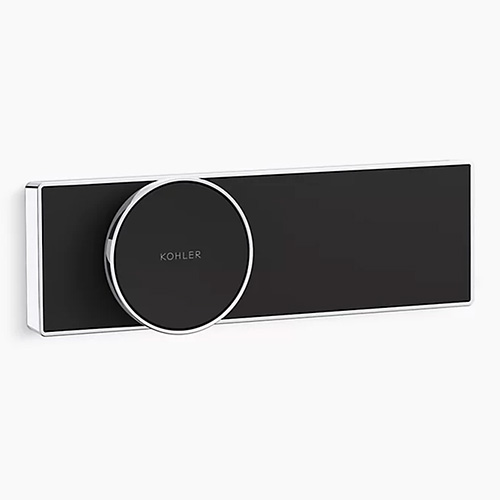

The advanced Anthem digital control gives you the power to customize your shower experience to make your dreams reality. The silky, minimalist display lets you configure and control your outlets, temperature, and flow. Eco mode is an optional built-in feature to help you conserve water and the summary screen promotes mindful water usage.
Required items sold separately
