Bathology Spectrum 360
Sauna, Dotless LED Lighting Control, Single Zone
Sauna LED Lighting Control System for use with Bathology Brilliance 360 LED Light Bars. Touch-sensitive illuminated control button controls power and infinite dimming.
Note: Operates up to 4 LED light bars (available in 5 sizes, sold separately below).
Sauna LED Lighting Control System for use with Bathology Brilliance 360 LED Light Bars. Touch-sensitive illuminated control button controls power and infinite dimming.
Features an elegant flush-mounted chrome power button with an illuminated outer ring. One-touch on or off, or touch-and-hold to dim or brighten. Includes power supply, power cord, extension cables, and 4-way splitter to connect up to four LED bars.
Operates up to 4 LED light bars (available in 5 sizes, sold separately below).
- Touch-Sensitive On/Off/Dimmer Button
- Power Supply
- Power Cord
- 2 Extension Connectors
- 4-Way Splitter
- Operation Manual
- Touch Activated Dimmer
- Power Supply
- 2 - DC Power Cable 50’
- DC Splitter 1-4 Port
Model | Spectrum 360 |
---|
Touch Activated Dimmer | |
---|---|
Operating Voltage | 24VDC |
Power Consumption | 72W |
Dimming Range | 0% - 100% |
Diameter | ¾" Body / 15/16" Trim |
Depth | 13/16" |
Rough-in Cutout | ¾" |
Finish | Polished Chrome, Illuminated |
Connector | 50' Barrel Connector |
Rating | IP20 |
Power Supply | |
---|---|
Input Voltage | 120VAC |
Output Voltage | 24VDC |
Power Consumption | 90W |
Nominal Amperage | 1.3A |
Connector | 50' |
Rating | UL, CE, FCC |
Light Bar Specifications |
---|
Model | Brilliance360-12 |
---|---|
Operating Voltage | 24VDC |
Lumens | 230 Lumens |
Kelvin Temperature | 3000K |
Dimension | 11/16"W x 7/16"H x 12"L (With Flush C Clips) 1-1/8"H (With Adjustable Mounting Clips) |
Connection | 20' barrel connector |
Rating | IP67 |
Model | Brilliance360-24 |
Operating Voltage | 24VDC |
Lumens | 460 Lumens |
Kelvin Temperature | 3000K |
Dimension | 11/16"W x 7/16"H x 24"L (With Flush C Clips) 1-1/8"H (With Adjustable Mounting Clips) |
Connection | 20' barrel connector |
Rating | IP67 |
Model | Brilliance360-36 |
Operating Voltage | 24VDC |
Lumens | 690 Lumens |
Kelvin Temperature | 3000K |
Dimension | 11/16"W x 7/16"H x 36"L (With Flush C Clips) 1-1/8"H (With Adjustable Mounting Clips) |
Connection | 20' barrel connector |
Rating | IP67 |
Model | Brilliance360-48 |
Operating Voltage | 24VDC |
Lumens | 920 Lumens |
Kelvin Temperature | 3000K |
Dimension | 11/16"W x 7/16"H x 48"L (With Flush C Clips) 1-1/8"H (With Adjustable Mounting Clips) |
Connection | 20' barrel connector |
Rating | IP67 |
Model | Brilliance360-60 |
Operating Voltage | 24VDC |
Lumens | 1150 Lumens |
Kelvin Temperature | 3000K |
Dimension | 11/16"W x 7/16"H x 60"L (With Flush C Clips) 1-1/8"H (With Adjustable Mounting Clips) |
Connection | 20' barrel connector |
Rating | IP67 |

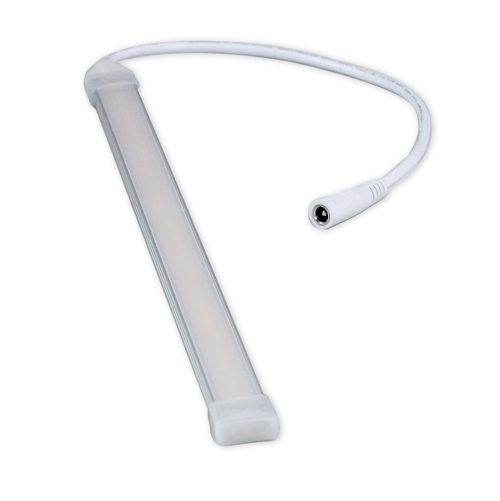

Illuminate your sauna with the Brilliance 360 Dimmable 12" LED light bar. Continuous LED light with no spots. Articulated hinges allow the angle of the bar to be adjusted as needed. Also available in 24", 36", 48" and 60" lengths.
Required Spectrum 360 Control System sold separately.
Limit of 4 fixtures per control system.

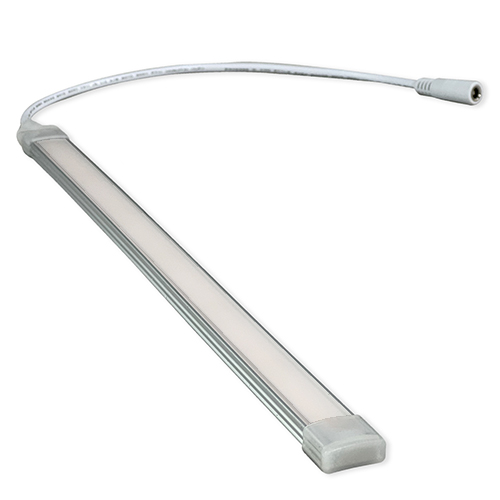

Illuminate your Sauna with the Brilliance 360 Dimmable 24" LED light bar. Continuous LED light with no spots. Articulated hinges allow the angle of the bar to be adjusted as needed. Also available in 12", 36", 48" and 60" lengths.
Required Spectrum 360 Control System sold separately.
Limit of 4 fixtures per control system.

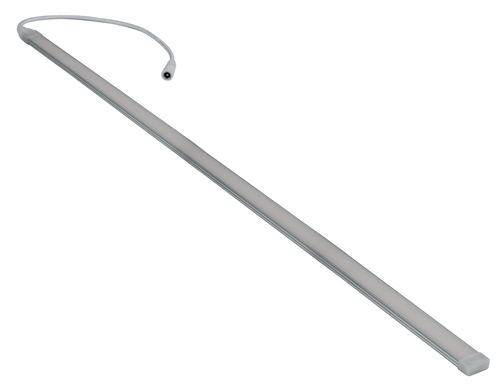

Illuminate your Sauna with the Brilliance 360 Dimmable 36" LED light bar. Continuous dotless LED light. Articulated hinges allow the angle of the bar to be adjusted as needed. Also available in 12", 24", 48" and 60" lengths.
Required Spectrum 360 Control System sold separately.
Limit of 4 fixtures per control system.

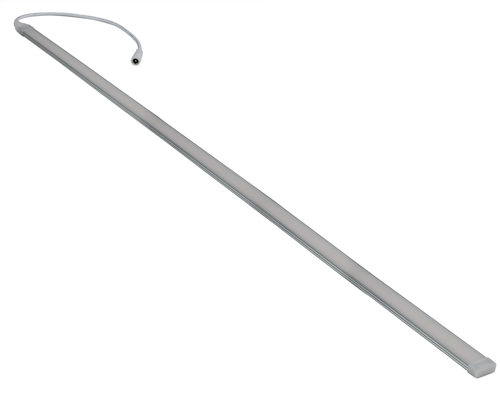

Illuminate your Sauna with the Brilliance 360 Dimmable 48" LED light bar. Continuous LED light with no spots. Articulated hinges allow the angle of the bar to be adjusted as needed. Also available in 12", 24", 36", and 60" lengths.
Required Spectrum 360 Control System sold separately.
Limit of 4 Fixtures per control system.

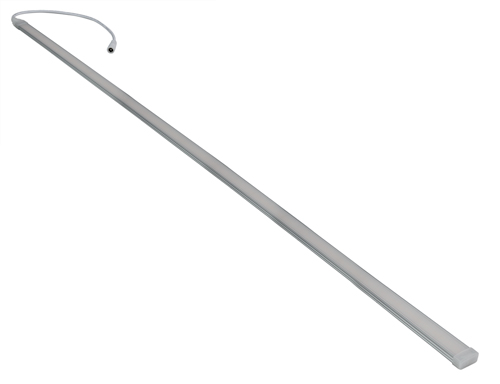

Illuminate your Sauna with the Brilliance 360 Dimmable 60" LED light bar. Continuous LED light with no spots. Articulated hinges allow the angle of the bar to be adjusted as needed. Also available in 12", 24", 36", and 48" lengths.
Required Spectrum 360 Control System sold separately.
Limit of 4 Fixtures per control system.
