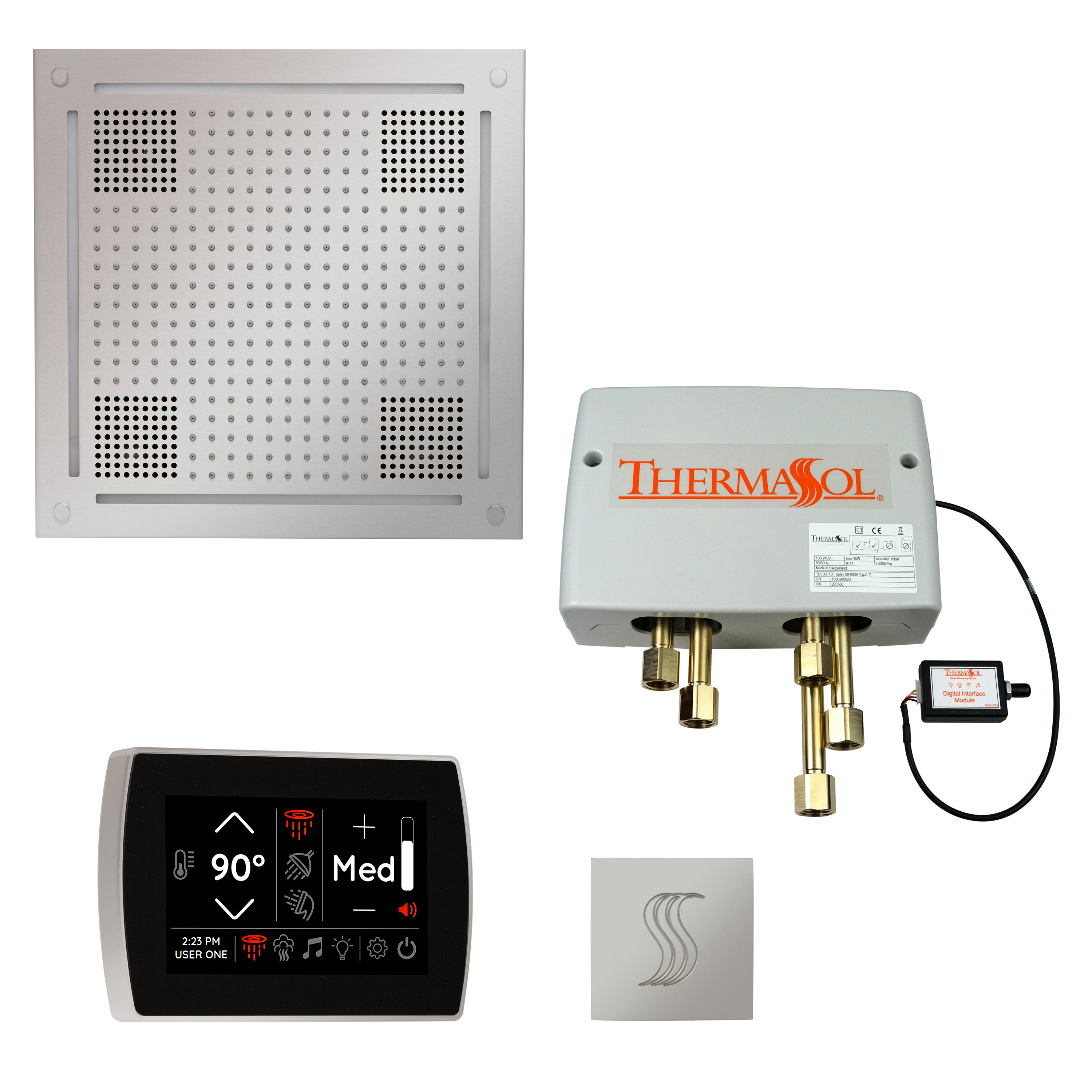

ThermaSol TWPHSR
SignaTouch 5 Flushmount", Digital Shower Valve, HydroVive 18", SteamVection, Steam Shower Pkg, SQ
If you are looking for State-of-the-Art Smart Technology with complete control over your home spa experience, this Total Wellness Steam Shower Package gives you all that and more! The streamlined SignaTouch Smart Touchscreen Control includes many of the same features as the ThermaTouch Control; operating steam generation, digital smart shower, light, sound and rainhead functionality, as well as flexible installation. Complete with HydroVive rainhead, Smart Digital shower valve and expansive SteamVection steamhead,ThermaSol has created a world-class lineup. With 15 finishes available (control trim, HydroVive, and Steamvection) to complete the design you had in mind - this truly is the total package!
See Technical tab for Finish availability
Steam generator sold separately
If you are looking for State-of-the-Art Smart Technology with complete control over your home spa experience, this Total Wellness Steam Shower Package gives you all that and more! The streamlined SignaTouch Smart Touchscreen Control includes many of the same features as the ThermaTouch Control; operating steam generation, digital smart shower, light, sound and rainhead functionality, as well as flexible installation. Complete with HydroVive rainhead, Smart Digital shower valve and expansive SteamVection steamhead,ThermaSol has created a world-class lineup. With 15 finishes available (control trim, HydroVive, and Steamvection) to complete the design you had in mind - this truly is the total package!
See Technical tab for Finish availability
Steam generator sold separately
SignaTouch 5 Flushmount Control
- Contemporary (flushmount with the wall)
- Flexible installation (vertical and horizontal)
- 15 designer controls trims available
- Steam Shower Control
- Operates Smart Shower Valve
- Operates HydroVive
- Operates Serenity Rainhead
- Touchscreen Control
- Steam time control
- Steam temperature control
- Memory Settings
- 2 Customizable User Settings
- Date display
- Time display
- Fahrenheit or Celsius Settings
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 5.7" W x 1.25" D x 4.8"H
- Lifetime Warranty (Parts and Labor - 2 years)
Digital Shower Valve
- Precise temperature control
- Precise water volume control
- Eliminates exposed valves and trims
- Ceramic disc Fluhs
- 2 industrial grade stepper motors
- Solenoid valve systems
- Integrated diverter
- Three output valve
- IAPMO approved
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 11"W x 3"D x 7"H
- 5 year warranty
HydroVive 18
- Ceiling mounted light, sound and rainhead system - all in a single self-contained module
- 15 designers finishes available
- Lighting
- Full-spectrum LED Lighting
- 1600 lumens max
- 200 Full-color luminous LED (R,G,B,W)
- Color Changing “Mood Lighting”
- Preset Chromatherapy Chakras
- Custom user-programmable “any color”
- Audio
- Distortion-free sound
- Amplifier: 100Watt RMS,
- Built-in Digital Signal Processor
- Built-in Bluetooth v4.2
- 2-1” Titanium Dome Tweeter with Ferro fluid-cooled aluminum voice coil
- 1- 4” woofer
- 1-4” passive radiator
- Complete sound settings control
- volume
- treble
- mid-range
- bass
- Stereo RCA input
- Built-in Bluetooth
- Lighting
- 300 easy-clean neoprene jets
- 40-80 PSI
- 1.8GPM Water Jets
- 300 CEC Approved
- Powered by:
- 24V DC
- 30 Watts power supply (provided)
- Designed, engineered, and crafted in the U.S.A
- Dimension: 18"W x 8"D x 18"H
- 5 year replacement warranty (Limited Finish warranty)
SteamVection Steamhead
- Floor to ceiling consistent temperature
- Brass alloy material
- Round style
- 15 designer finishes available
- Whisper quiet
- Essential oil well for aromatherapy (sold separately)
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 1.75"W x 1.9"D x 1.75"H (Square) 1.75"Diameter x 1.9"Depth (Round)
- 5 year warranty
SignaTouch 5 Flushmount Control
- SignaTouch control
- Silicone
- Mud ring
- Installation instructions
- Warning label
- Warranty
Digital Shower Valve
- Digital Shower Valve
- Screw set
- Connection nipple set
- CAN-bus cable 50ft'
- Digital interface
- Back up battery
- Installation manual
- Warranty
HydroVive 18
- HydroVive 18
- Wood screws
- Silicone
- 25' Yellow M12 Cable
- 25' Audio Cable
- Installation instructions
- Warranty
SteamVection Steamhead
- SteamVection steam head
- Silicone
- Lubricant
- Installation manual
- Warranty
| Model | TWPHSR |
|---|
| SignaTouch 5 Flushmount | |
|---|---|
| Construction | Black Acrylic |
| Display | 5" Capacitive Touch Screen |
| Display Full Color | 16.7M |
| Display resolution | 480 x 800 |
| Interface | Single Touch |
| Shipping Weight | 1.25 lbs |
| Width | 5.7" |
| Depth | 1.25" |
| Height | 4.8" |
| Installation | In Shower |
| Digital Shower Valve | |
|---|---|
| 2 Inputs | 1/2" FNPT |
| 3 Outputs | 1/2" FNPT |
| Power Supply | |
| Input | 110VAC, 0.5 Amps |
| Output | 15VDC, 3 Amps required |
| Shipping Weight | 10.65 lbs |
| Width | 11" |
| Depth | 3" |
| Height | 7" |
| HydroVive 18 | |
|---|---|
| Construction Material | Machined Brass |
| Function Lights | 200 Full-color luminous LED |
| Water Supply | 3/8”, 40-80 PSI, 1.8GPM |
| Water Jets | 300 |
| CEC Approved | Yes |
| Amplifier | 100Watt RMS |
| Digital Signal Processor | Built-in |
| Weight | 37 lbs |
| Width | 18" |
| Depth | 8" |
| Height | 18" |
| SteamVection | |
|---|---|
| Material | Brass Alloy |
| Connection | 1/2" NPT |
| Shipping Weight | 1 lb |
| Square Style Dimensions | |
| Width | 1.75" |
| Depth | 1.9" |
| Height | 1.75" |
| Round Style Dimensions | |
| Diameter | 1.75" |
| Depth | 1.9" |
