Amerec AK6

AK Series 6KW Steam Shower Generator

Model
AK6
SKU
9014-123

The Amerec AK6 is a 6kW home steam shower generator designed for residential steam baths with dimensions up to 150 adjusted cubic feet (ACF).

Required control package sold separately.

Your Price
$2,695.00

The Amerec AK6 is designed for home and day spa steam baths with dimensions up to 150 adjusted cubic feet (ACF).

The AK6 steam shower generator features a stainless-steel tank, professional-grade heating elements, modular snap-in control connections, durable electronic components and parts, an electronic water level control system, and a variety of other innovative components.

Amerec AK Series steam generators are engineered to provide years of exceptional performance and reliable, worry-free operation. The Amerec AK6 steam unit is equipped with a Sequential Temperature Control which ensures an even, consistent steam production.

The Amerec AK6 steam bath generator is designed for ease of maintenance and is built to power the most demanding home and commercial steam rooms. Its stainless-steel tank and water probes provide long-lasting strength and dependability. The AK6 steamer includes removable heating elements for easy, economical service.

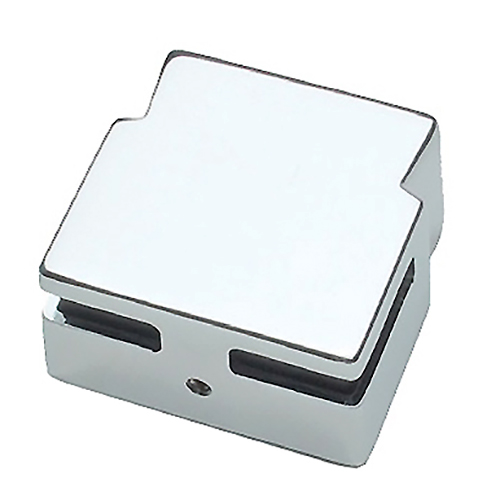

The Amerec AK6 steam room generator requires the available K3 control for operation which regulate bathing duration and temperature, or the R30K 30-minute timer. Each control package includes a matching finish ComfortFlo steam head.

The AK6 6kW steam generator is available in 240V  or 208V  and can be field wired for single-phase or three-phase configurations.

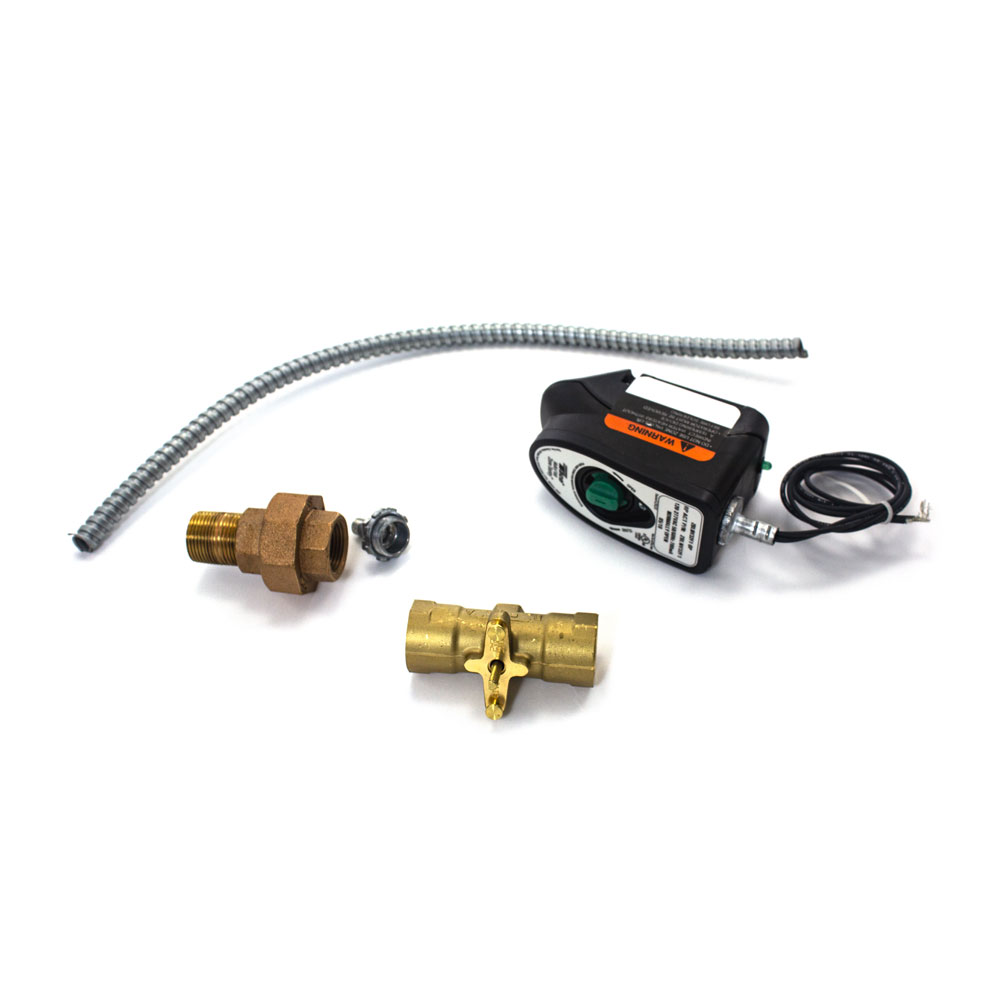

We recommend the available Amerec ADK Automatic Drain System with your AK6 steam shower unit which automatically drains the generator tank after each use to help prevent calcification and lime build-up.

Amerec AK series generators can be linked in tandem to accommodate steam rooms with dimensions up to 1500 adjusted cubic feet. Connection cables are sold separately, and each generator requires a comfortFlo steam head. Homeowners, health clubs, and day spas rely on Amerec AK generators for low cost, safety, and durability. Amerec AK residential steam shower generators are available in a variety of power ratings to best suit your needs.

The Amerec AK6 has a limited lifetime warranty and is fully serviceable. Amerec generators are UL, CSA, and CE listed for your safety.

  • Sequential temperature control for soft steam
  • Stainless steel tank
  • Industrial grade, serviceable heating elements
  • Durable electronic components
  • Electronic water-level control system
  • Low voltage safety control circuits
  • Available Auto Drain automatic draining system
  • Ability to field wire phase for 1-phase or 3-phase
  • Ability to connect multiple generators to heat steam baths larger than 550 cubic feet
  • Full 3/4" port drain valve
  • ASME safety valve
  • UL/CSA/CE listed
  • 6kW steam bath generator
  • Installation and operation manual
  • Limited warranty
Swipe horizontally to reveal full table content.
Model AK6
Minimum Adjusted Cubic Feet 80
Maximum Adjusted Cubic Feet 150
Shipping Weight (Lbs.) 35lbs
Kilowatt Rating (KW) 6 KW
Water Supply Connection 3/8” Compression Connection
Generator Steam Line Connection 1/2” NPT
Steam Head Connection 1/2” NPT
Drain Connection 3/4" NPT
Safety Relief Valve Connection 3/4" NPT
Safety Relief Valve PSIG 10 PSIG
Control "Rough In" Cut Out 2-3/8” Diameter
Generator Control Connection 8 Pin, Snap-In Connector
Generator Control Cable 25', 8 Conductor, 28 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Width In Inches 16-1/2”
Depth In Inches 6-1/4”
Height In Inches 15”
Required for Operation

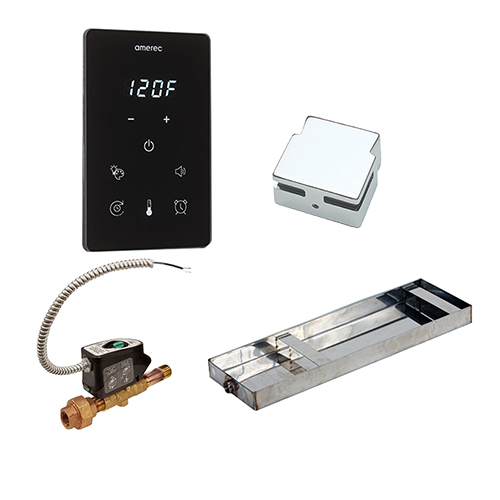

K2 Operating Equipment Package, AK Series
Model
Glacier
SKU
9036-156

Glacier K2 Operating Equipment Package for AK Series Generators. Includes steam head.

Your Price
$1,705.00

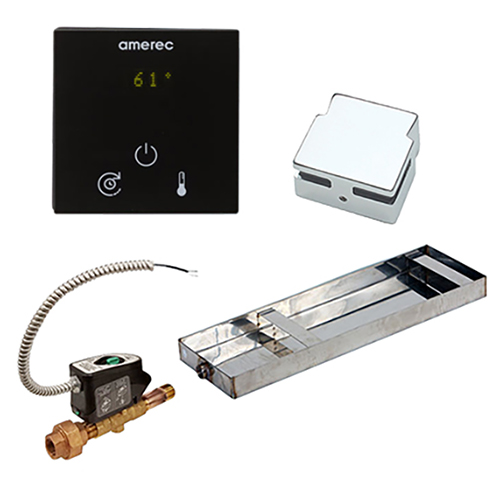

K3 Operating Equipment Package, AK Series
Model
Columbia
SKU
9036-116

Columbia K3 Operating Equipment Package for AK Series Generators. Includes steam head.

Your Price
$1,645.00
K2 Digital Control Package, AK Series
Model
K2
SKU
9114-106

The Amerec K2 steam shower generator control kit works with Amerec AK series steam generators. Wi-Fi and Smart home ready, this control features adjustable time, temperature and a 24 hour delay and includes a ComfortFlo steam head.

6 different Trim Ring/Steam head finishes for the K2 control are available.

Your Price
$990.00

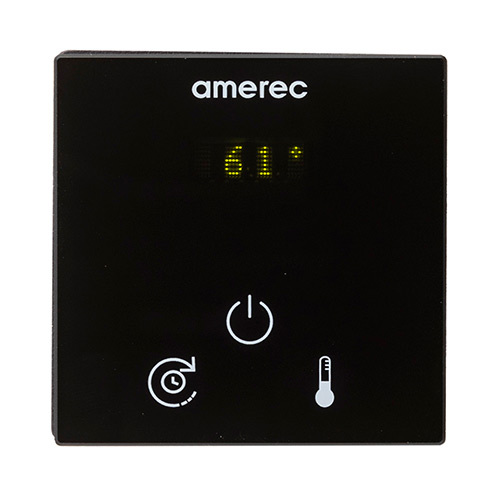

K3 Digital Steam Shower Generator Control Kit, AK Series
Model
K3
SKU
9114-126

The Amerec K3 steam shower generator control kit works with Amerec AK series steam generators. This control kit is able to be mounted inside or outside the steam room and features a digital control, remote sensor and includes a ComfortFlo steam head.

6 different Steam head finishes for the K3 control kit are available.

Your Price
$860.00

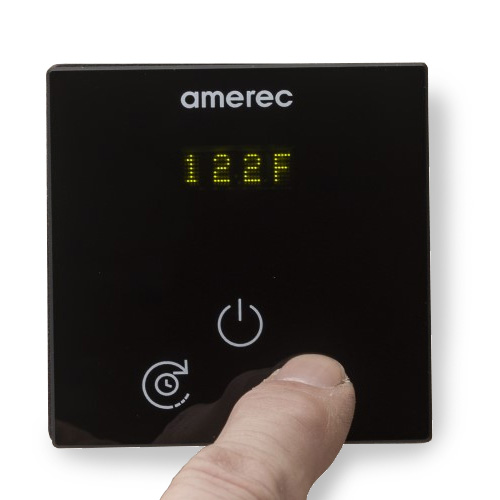

KT3 Digital Steam Shower Generator Control Kit, AK Series
Model
KT3
SKU
9114-136

The Amerec KT3 steam shower generator control kit works with Amerec AK series steam generators. A stylish update to Amerec's KT60 control, the control is backward compatible with the classic KT60. Featuring a built-in temperature sensor, this control was designed for use inside the steam room. With the simple ease of 3-buttons, you control on/off, temperature, and time duration settings. The display alternates every 5 seconds between atmospheric room temperature and the remaining time of your steam session. With maximum session settings of up to 125 °F and 60 minutes (residential use), this control kit includes a ComfortFlo steam head.

6 different Steam head finishes for the KT3 control kit are available.

Your Price
$840.00

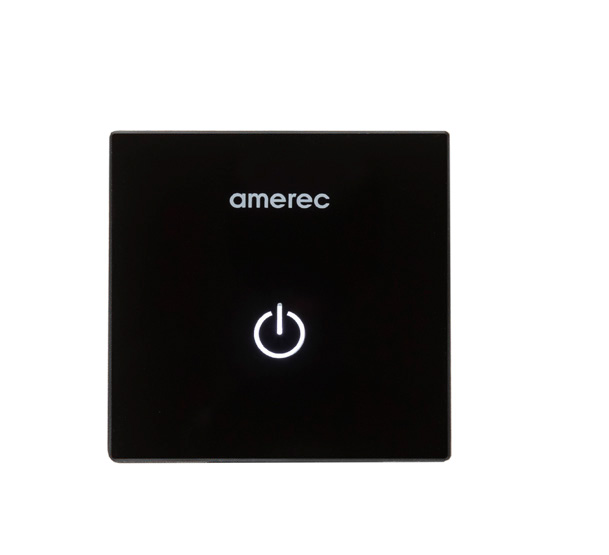

K4 On/Off Non-Thermostatic Control, AK Series
Model
K4
SKU
9114-147

The Amerec K4 steam shower generator control kit works with Amerec AK-series steam bath generators. This control kit may be mounted inside or outside the steam room and features a non-thermostatic control and includes a ComfortFlo steam head.

Choose from 6 available designer finishes for the ComfortFlo steam head.

Your Price
$330.00
