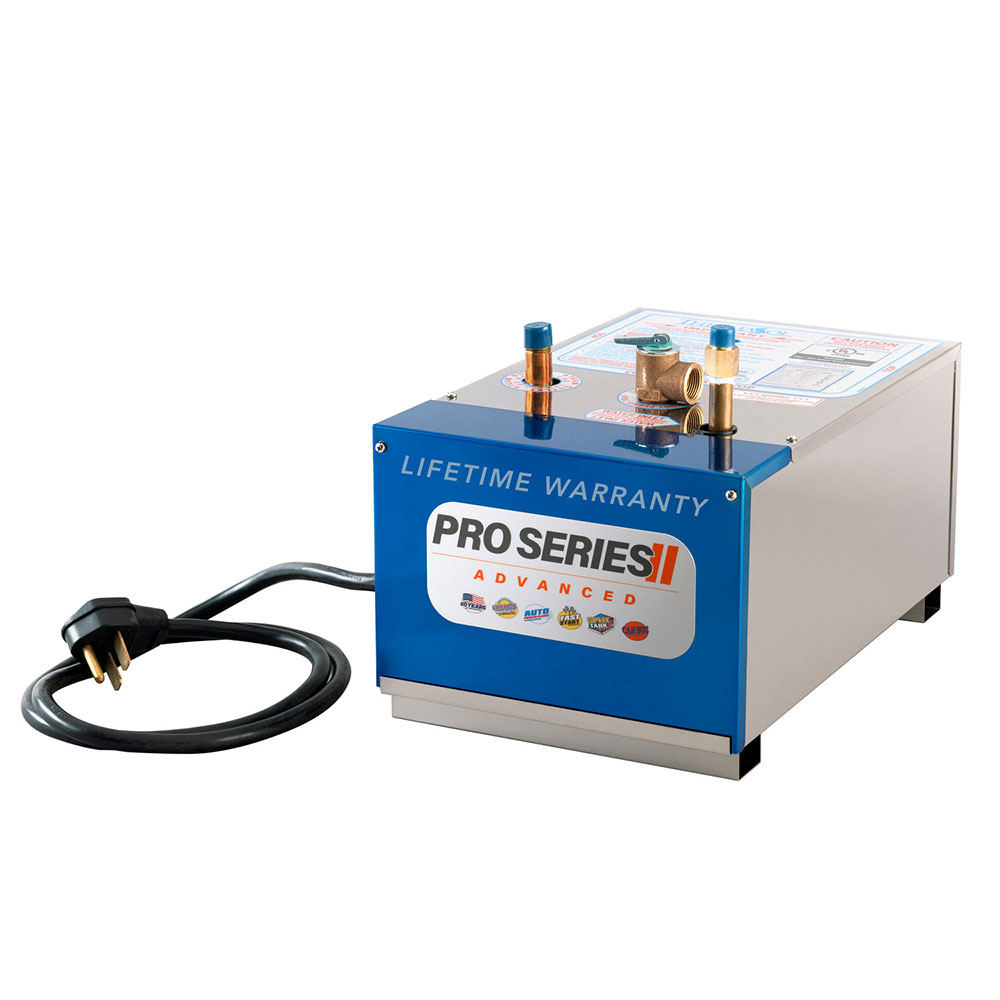

ThermaSol PROII-750
PRO Series II Advanced Steam Shower Generator, 20kW w/Fast Start and PowerFlush
A welcome addition for any bathing enthusiast, The PROII Series raises the bar with an advanced cleaning system. Featuring Constant Steam, Split Tank, Fast Start and PowerFlush exclusive technologies, the ThermaSol PROII-750is a 20kW home steam shower generator designed for steam baths with dimensions 576 to 750 adjusted cubic feet (ACF). ThermaSol's PRO Series Steam Shower Generators combine the latest technology with ThermaSol durability, performance, and efficiency to ensure a consistent steam shower experience every time.
Required control package sold separately
The all-new ThermaSol PROII-750 is designed for home steam rooms measuring 576 to 750 adjusted cubic feet (ACF). The PROII-750 20kW steam bath generator accepts voltage in the range of 208V-240V, single-phase (1-PH) configuration.
The PROII-750 generator is equipped with durable stainless-steel construction, professional-grade heating elements, Auto PowerFlush inner-tank cleaning system, FastStart technology, and a variety of other noteworthy features.
ThermaSol PRO II Series generators are engineered to provide years of dependable operation. The PROII-750 delivers a consistent bathing experience by generating steam at a constant rate without bursts or lags. The unit's innovative Fast Start feature provides quicker start-up times.
The PROII-750 includes the advanced PowerFlush self-cleaning system which helps prevent harmful sediment and lime build-up of the generator tank. The generator's split tank design enhances the lifespan and longevity of the steam unit.
The PROII-750 is among the industry's most advanced steam generators. The unit features CAN Bus technology for reliable communication between all connected ThermaSol devices.
The PROII-750 generator works with the Thermatouch, Signatouch, Microtouch, Signature Control, Easy Start, Wellness Package, and Digital Shower Package. Select the available control or control package with features that best suits your bathing preferences.
The PROII-750 steam shower unit works with the Serenity Light and Music Series, Hydrovive Series, and other ThermaSol steam shower accessories.
The PROII-750 can be installed up to fifty feet away from the steam shower enclosure. Typical installation locations include closets, vanities, climate-controlled attics, and basements.
The PROII-750 generator carries ThermaSol's limited lifetime warranty and is fully serviceable. All ThermaSol steam bath generators are made in America and are UL and CSA listed for your safety.
Note: Generators sizing are listed based on Thermasol's theory on "Simple Sizing" of Cubic Feet = Length X Width X Height. No adjustments for materials.
- Constant steam flow
- Constant steam rate
- No steam lag
- No steam burst
- FastStart Technology (exclusive) - steam in seconds, not minutes
- PowerFlush Technology (exclusive) - pressurized inner tank system to remove sediment
- Works with HydroVive and Serenity systems
- Two-way digital CAN-bus Technology (exclusive)
- Split Tank longevity through design
- 240V/1PH operation
- For steam rooms 576 to 750 adj. cu. ft.
- Superior heating elements-Incoloy low watt density
- Stainless Steel construction
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 22" L x 18"W x 14" H
- Lifetime Warranty
- 20kW Steam generator
- In-line water screen kit
- Steamhead housing installation tool
- Steamhead housing and cable kit
- 50' CAN-bus cable for the controller
- Installation instructions
- Static cling warning label
- Warranty
| Model | PROII-575 |
|---|---|
| Kilowatt Rating | 20 kW |
| Maximum Cubic Feet | 750 ACF |
| Amperage | 92 |
| Heater Weight | 46 lbs |
| Water Inlet | 3/8" NPT |
| Steam Outlet | 1/2" NPT |
| Safety Valve | 3/4" NPT |
| Electrical Connection | Hardwired |
| Width | 22" |
| Depth | 18" |
| Height | 14" |
Designed for use inside the steam shower, the ThermaSol ThermaTouch 10" LCD in-shower touchscreen controller manages all aspects of the smart shower and steam generation, including steam duration and temperature. You can access a variety of popular apps while setting the steam, lights and music to your exact preferences.
See Technical tab for Finish availability
The ThermaSol TT7-SVRD control kit was designed for installation inside the steam shower, the waterproof ThermaSol ThermaTouch 7” LCD control kit provides convenience and complete control of the steam bathing experience.
Includes Control and Steamhead with a variety of styles and finishes.
See Technical tab for Finish availability
The ThermaSol SignaTouch 5” LCD square control kit allows you to control steam room functionality while bathing. The touchscreen allows a simplified way to control your steam shower experience from temperature to lights and everything in between.
See Technical tab for Finish availability
Designed for use with the ThermaSol Pro Series or AF Series of steam generators, the ThermaSol Signature Series round control kit is an easy and convenient way to control steam room functionality from inside the shower.
Steam Generator Sold Separately
See Technical tab for Finish availability
Designed for use with the ThermaSol Pro Series or AF Series of steam generators, the ThermaSol Signature Series control kit allows users to control time and temperature settings, on/off and pause modes, lighting, and music from inside the steam shower.
Steam Generator Sold Separately
See Technical tab for Finish availability
The ThermaSol MicroTouch Steam Shower Control kit offers control of steam room functionality from inside the steam shower. This package includes MicroTouch Control and SteamVection Steamhead. Available in 15 designer finishes.
Steam Generator Sold Separately
See Technical tab for Finish availability
Designed for the unlikely event of a slow water leak, the ThermaSol Drain Pan installed beneath the steam generator will aid in the trapping and redirecting of this water to an acceptable and predetermined area.
