Mr.Steam MX6
MS MAX Series 30kW Steam Shower Generator
Improving on the popular MS Super 6E, the MX6E 30kW home steam shower generator is engineered for residential steam rooms up to 964 adjusted cubic feet (ACF).
Required control package sold separately.
Note: The Mr. Steam MX6E replaces the discontinued Mr. Steam MS SUPER 6E generator
Improving on the popular MS Super 6E, the MX6E is engineered for home steam rooms up to 964 adjusted cubic feet (ACF).
The unit features a corrosion-resistant stainless-steel tank, professional-grade heating elements, durable electronic components, and a variety of other noteworthy features.
Mr. Steam MAX Series generators are engineered to provide long-lasting safety, reliability, and efficiency. The MX6E steam unit is equipped with a full-port drain-valve, water-level control system, and LED color light indicators for easy-to-read visual diagnostics.
The MX6E generator features intelligent steam bath technology and runs off an advanced microprocessor operating platform, making it perfect for large home and commercial steam bathing applications.
Mr. Steam MS-e generators include modular plug and play connections so that you may easily install steam shower accessories such as ChromaTherapy, AromaTherapy, and SteamLinx.
The optional Express Steam feature includes a built-in thermostat that maintains water temperature so that you may start steaming quickly.
The Mr. Steam MX6E 30kW steam bath generator is available in 240V and 208V single-phase (1PH) configurations.
The compact size of the generator allows the steam shower unit to be installed conveniently out of sight up to 60 feet away from the steam room. Typical installation locations include closets, vanities, and cabinets.
The MS MAX 6E generator is compatible with all Mr. Steam controls and control packages. Select the available control with features that best suit your bathing preferences.
We recommend the available Mr. Steam AutoFlush automatic draining system with your MX6E. The Auto Flush system automatically drains the generator tank to help prevent mineral build-up and ensure the unit continues to perform optimally.
The MX6E is fully serviceable and carries a limited lifetime warranty. Mr. Steam MS-e residential steam generators are US and Canadian UL listed and CE and NOM certified for your safety.
- For steam baths sized from 823 to 964 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
- 30kW Steam bath generator, 27-5/8" x 20-3/4" x 7-7/8"
- Installation and operation manual
- Limited warranty
| Model | MX6E |
|---|---|
| Minimum Adjusted Cubic Feet | 823 |
| Maximum Adjusted Cubic Feet | 964 |
| Shipping Weight | 70 lbs |
| Kilowatt Rating | 30 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 3/4" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 27-5/8" |
| Depth | 7-7/8" |
| Height | 20-3/4" |
The digital iTempoPlus control provides programmable temperature control, time duration, personalized temperature settings, on/off, and control of aroma and lighting. The iTempoPlus features a soft touch key pad and easy-to-read digital readout display and is compatible with the SteamLinx mobile control module.
Comes with matching designer finish aroma steam head.
No cables, no wires, and no hassle— the Mr. Steam AIRT control package is an easy-to-use and convenient way to control the steam shower.

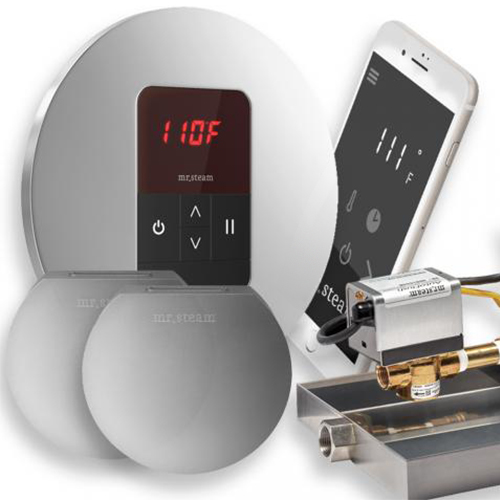

The Butler Max Steam Shower Operating Package from Mr.Steam for MAX Series generators contains an MS iTempo operating control with matching-finish steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
The Butler Max steam shower control package from Mr.Steam for MAX Series generators contains an MS iTempo control with matching-finish linear steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.

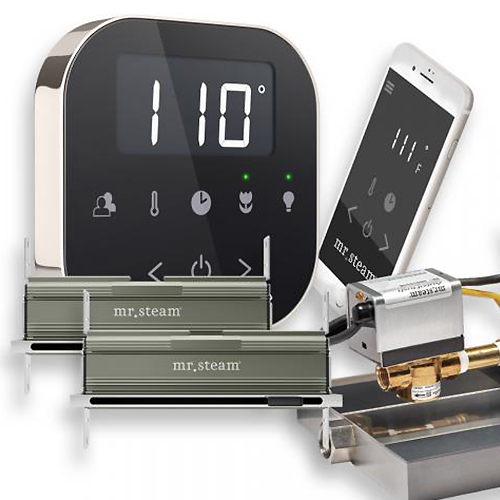

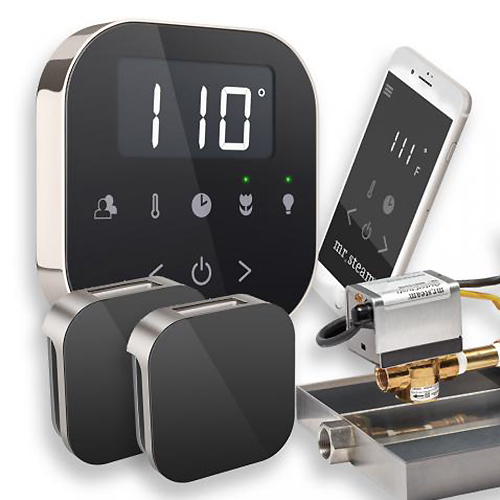

The AirButler Max Steam Shower Control Package from Mr.Steam for MAX Series generators contains an AirTempo operating control with matching finish steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
The AirButler Max Steam Shower operating control package for Mr.Steam MAX-Series generators contains an AirTempo operating control with matching finish linear steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.

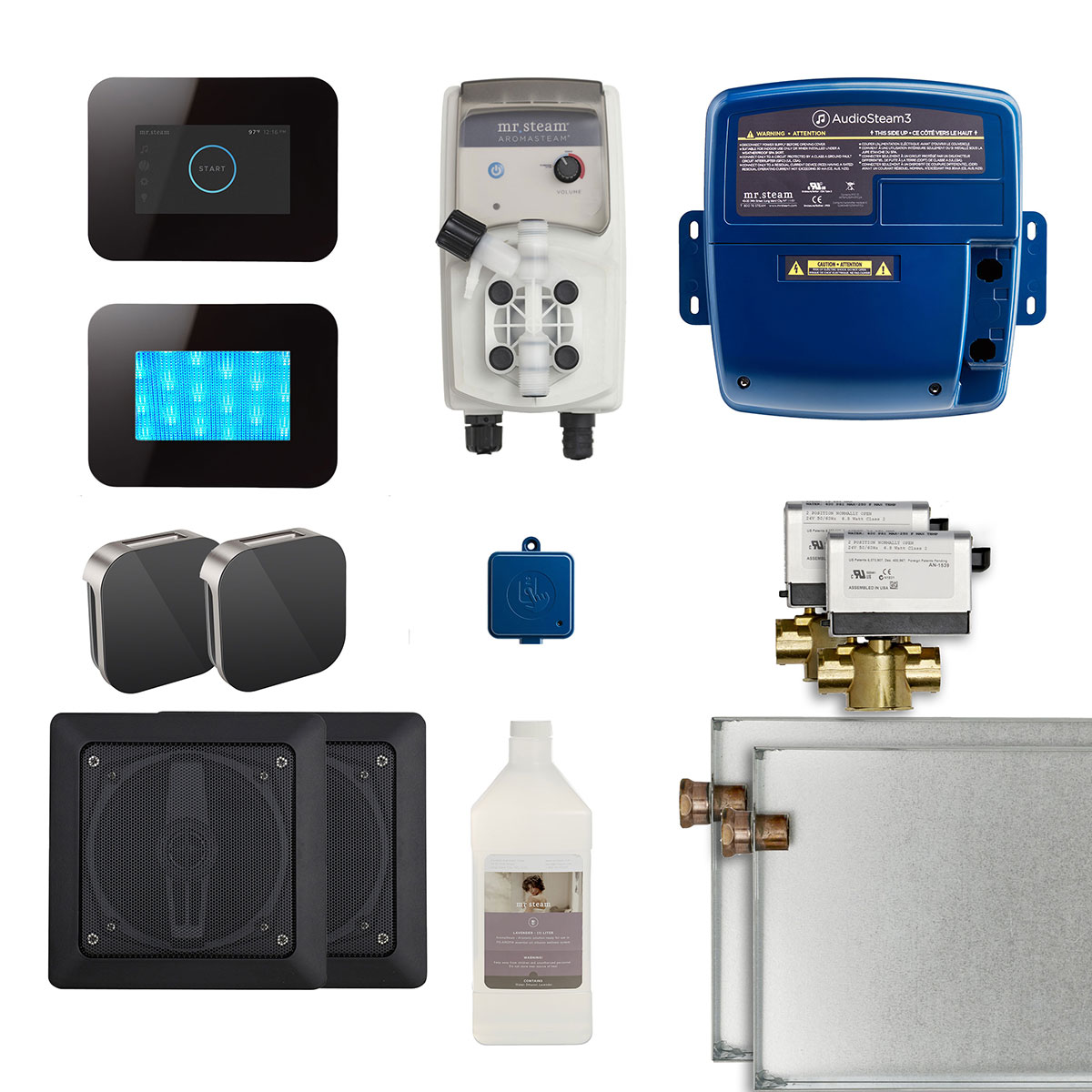

The iDream Max steam shower spa & operating package for Mr.Steam MAX Series generators contains an ISTEAM3 operating control with matching finish steam head, automatic drain valve, drain pan, remote-start app, aroma system with aroma, chroma light system, audio system, and speakers for the ultimate steam bathing experience
The sophisticated ChromaSteam3 system is controlled by a color wheel on the iSteam®3 Control (Controls a maximum of 2 lights) for dialing in any color imaginable. Modulate the brightness to your taste or choose to have your light pulse gently as you shower.

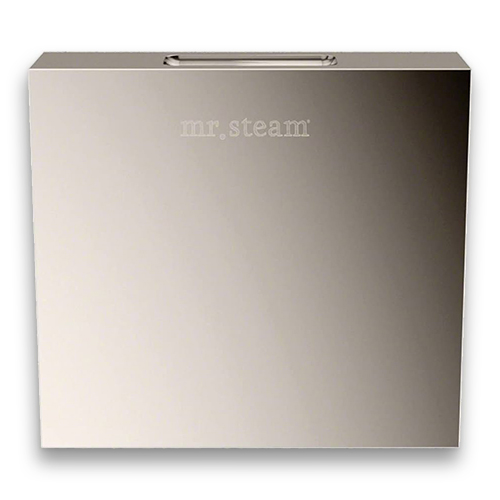

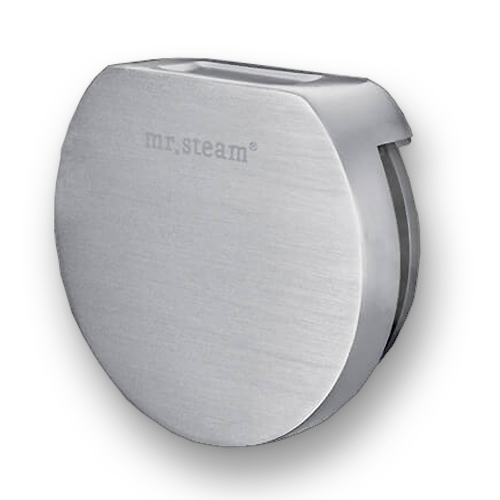

Included with every iTempo and iTempo/Plus control package, the AromaSteam steam head has been designed to provide a quieter, calming steam bath experience.
Included with every iTempo or iTempo/Plus control package, the AromaSteam Steam head has been designed to provide a quieter, calming steam bath experience.

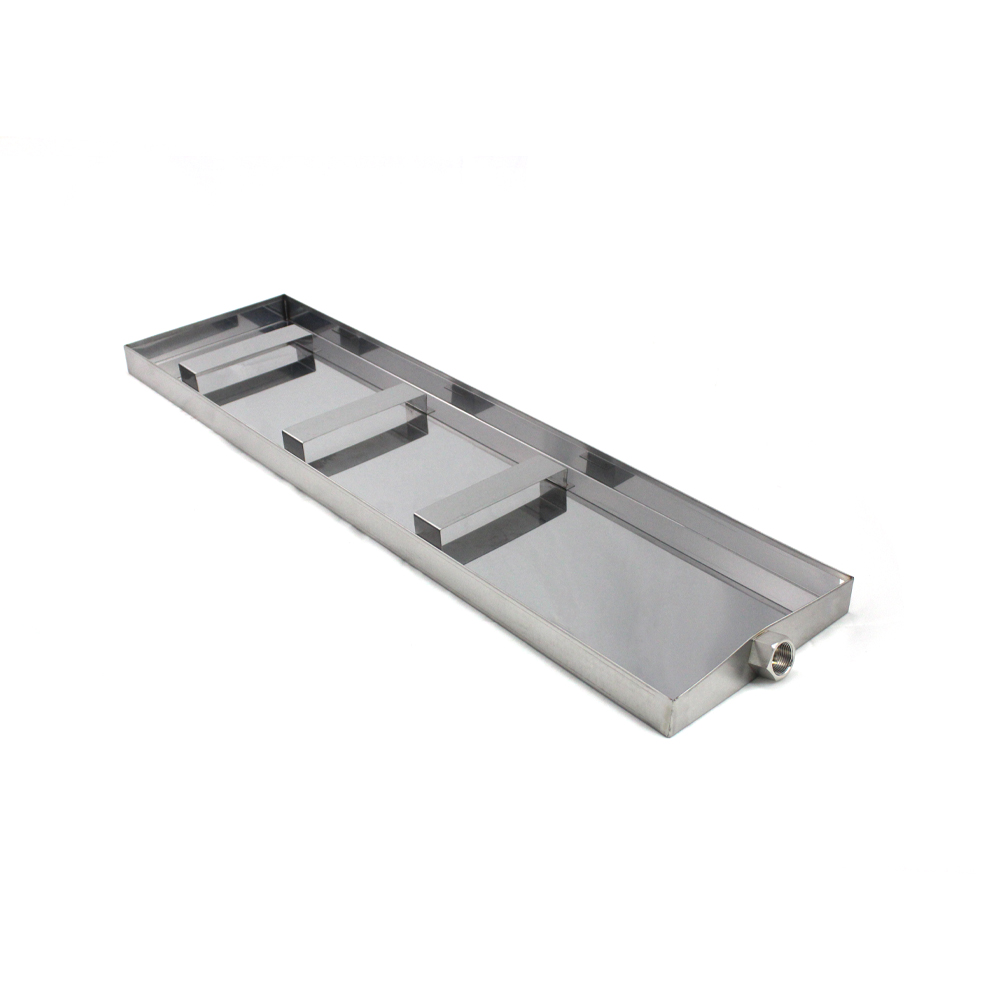

Designed for the unlikely event of a slow water leak, the Mr.Steam Drain Pan installed beneath the MAX steam generator will aid in the trapping and redirecting of this water to an acceptable and predetermined area.
The AirTempo Control can be installed flush to the wall of your shower or steam room using the AirTempo® Flush Mount Kit, which consists of a sleek bezel into which the control snugly fits. The AirTempo® Flush Mount kit is a great solution if you’re covering a hole left behind by your old steam shower control.
Available in Black or White fascia with Polished Chrome trim or five designer finishes to match any project: Brushed Bronze, Brushed Nickel, Polished Brass, Polished Nickel, Satin Brass, and Oil Rubbed Bronze.
Must order AirTempo Control separately.
This Room Sensor is for use on Tempo, eTempo, iTempo, and AirTempo controls on Mr.Steam’s Residential MS model steam bath generators.
External Probe, iSteam
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.

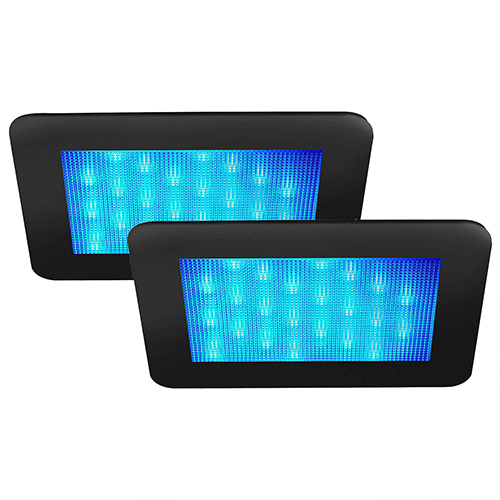

The MrSteam ChromaSteam-72 system suffuses the steam shower with a spectrum of color from airy blue to warm red, allowing you to select the color and modes directly from the AirTempo® or iTempoPlus® Control keypad.
The Mr Steam Audio@Home System is a stand-alone system and does not operate with any of their control packages. It is a Bluetooth device that will work with any Bluetooth device such as a Smartphone or Tablet.
Teak wood, beautifully finished and sealed.
The Mr. Steam Steamlinx System provides wireless control of the steam room from smart phone or mobile device.
Requires use of an iSteam3, AirTempo, iTempoPlus, or iTempo operating control.
Choose from five essences for whatever mood you’re seeking. Each fragrance comes in a long-lasting 33 oz bottle. Available in Eucalyptus, Lavender, Evergreen, Energizing Mint and Breathe, AromaSteam Oils will leave you rested, rejuvenated and relaxed.
Installed out-of-sight and near your steam bath generator, the AromaSteam electronic oil delivery system will deliver your favorite aroma oil directly into the steam line.
