Bathology Spectrum 441
Sauna Room / LED Lighting System, Single Zone
Reveal the true beauty of your sauna with the natural white light of the Spectrum 441 Sauna LED Light System.

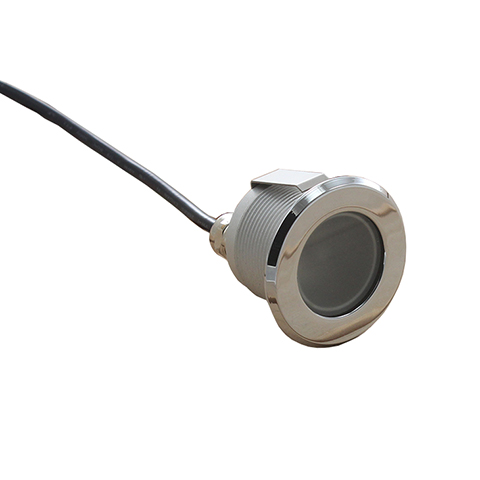

Distinctive and stylish, these flush-fitting, water-proof LED light fixtures will illuminate your sauna environment while emphasizing the depth and beauty of the wood surfaces. One system can power from 1 to 11 lights, allowing you to custom tailor the ambience of your room and ensure a safe and inviting bathing space.
The flush-mounted lights may be directed to highlight and define specific areas and enhance the safety or visual effect. Their compact 1-1/4” diameter lens and integrated appearance make them perfect for ceilings, bench skirting and steps, and to illuminate walkways. An IP68 immersion rating ensures you that these lights are engineered and trusted as safe for use in wet areas.
Beauty and Durability
Spectrum 441 lights are impervious to corrosion and employ a polished sealed stainless steel bezel mounted to a robust aluminum body. With rugged construction and 100,000-hour LED’s, these lights will provide a lifetime of bathing splendor.
Easy Installation
The Spectrum 441’s transformer mounts easily and can be connected to a switchable 120VAC power source. Power is converted to a low-voltage12V, and is routed in series to each light fixture using cable in lengths available from 25 to 100 feet. A single transformer may be used to connect up to eleven lights.
Meticulous planning and consideration has been taken to ensure easy and trouble-free and water-tight installation making the Spectrum 441 a must for new construction or rebuild projects. Tradesman and installers will appreciate the installation template supplied with each system for precise light placement every time. The compact size also provides a greater variety of placement options.
- Suitable as primary light source
- 11-Light capacity
- Polished stainless steel bezel
- Tempered frosted glass lens
- Water-safe materials
- Aluminum Material
- Luminous Flux 142±2.5%
- Pure-white LED light
- 120 Degree beam angle
- Not dimmable
- Uses conventional light switch
- Safe operation
- Ease of installation
- Flush-mounted, low-profile design
- IP68 immersible rating
- One waterproof LED light fixture w/ frosted lens
- Installation template
- Power box
- Transformer
- Relief strain
- Cables
- Silicone sealant
- Connectors
- Installation and operation manual
- Limited warranty
Model | Spectrum 441 |
---|
Brilliance Fixture | |
---|---|
Type | LED Cool White (3500K) |
Operating Voltage | 12V DC |
Maximum Input Current | 700mA |
LED | 1 x 3 Watt |
Beam Angle | 120 Degree |
Lumens | 142 Lumens max per fixture |
Trim Finish | Polished Stainless Steel |
Housing Composition | First Grade Aluminum |
Lens | Frosted, 1-1/4” Diameter |
Lens Composition | Tempered Glass |
Rough-in Cutout | 1-5/8” to 1-11/16" |
Trim Dimension | 2” Diameter, 1/8” Profile |
Body Dimensions | 1-15/32” Diameter x 1-7/8” Deep |
Rating | IP68 |
Certifications | CE / RoHS / WEEE |
Power Supply | |
---|---|
Operating Voltage | 120VAC |
Output Voltage | 700mA |
Power Consumption | 35W |
Nominal Amperage | 1.1 Amps |
Dimensions | 5-7/8”W x 1-1/8”H x 1-5/8”D |
Enclosure | |
---|---|
Housing Composition | Steel, black powder coated finish |
Dimensions | 7-3/4”W x 1-7/8”H x 4-7/8”D |
Standards | NEMA 1 |
Listing | ETL,UL |
Construction Template | |
---|---|
Composition | Steel, Galvanized, Gauge 22 |
Dimensions | 15-1/8”L x 1/32”H x 3”W |
