Amerec CB 7
Contactor for SC Control
Designed for use with Amerec Sauna Heater Control models SC-9, SC-60 and SC-Club. Available for Single Phase (CB7-1) and 3-Phase (CB7-3) applications.
Designed for use with Amerec Sauna Heater Control models SC-9, SC-60 and SC-Club. Available for Single Phase (CB7-1) and 3-Phase (CB7-3) applications.
The contactor is used to make the electrical connections between the power source, sauna heater control, temp sensor, light, and the sauna heater.
- For use with control models SC-9, SC-60 & SC-Club
- Available in single phase or 3-phase
- Dimensions: 10.6"W x 10"D x 3.75"H
- UL Listed
- Limited Warranty
- Contactor
| Model | CB7 |
|---|---|
| Construction | Stainless Steel |
| Mountable in sauna room? | Yes |
| Electrical Location | Back |
| Installation Type | Wall |
| Maximum Temp Settings | 194 F |
| Volts | 208/240V |
| Phase | 1 or 3 |
| Amps | 50 |
| Length | 10.6" |
| Width | 10" |
| Height | 3.75" |
| Weight | 10 lbs |
| Listings | UL |

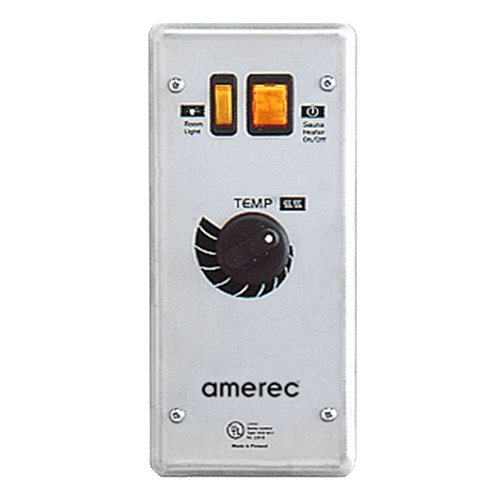

Sleek, flush mounted design with satin stainless steel face plate, the Amerec SC-Club sauna control panel is a wall-mounted sauna control with on/off switch for club use with attendant on duty (no timer), lightswitch, adjustable thermostat control, and heat indicator light.
When used with Floor Heater models requires use with CB7 contactor for selected phase (sold separately).

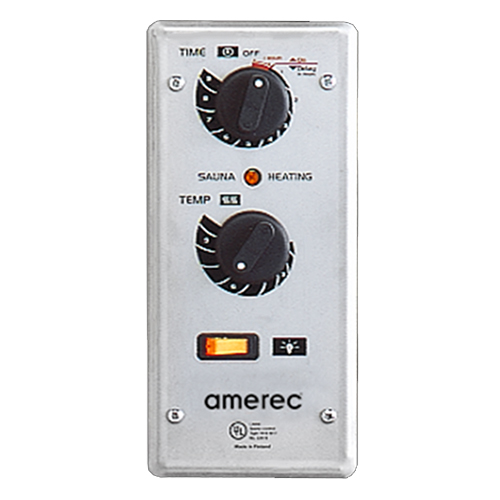

Sleek, flush mounted design with satin stainless steel face plate, the Amerec SC-9 sauna control panel is a wall-mounted sauna control with a 60-minute timer with 9 hour time-delay for startup, lightswitch, adjustable thermostat control, and heat indicator light.
When used with Floor Heater models requires use with CB7 contactor for selected phase (sold separately).

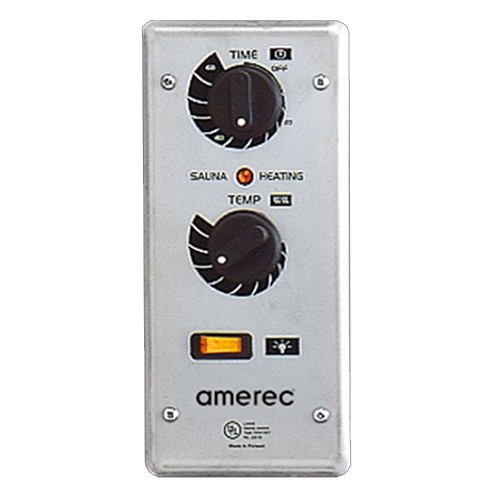

Sleek, flush mounted design with satin stainless steel face plate, the Amerec SC-60 sauna control panel is a wall-mounted sauna control with a 60-minute timer, lightswitch, adjustable thermostat control, and heat indicator light.
Must use with CB7 contactor for selected phase (sold separately).
