Mr.Steam MSSUPER1E
MS-E Series 10kW Steam Shower Generator
The Mr. Steam MS Super 1E home steam shower generator is engineered for residential steam rooms up to 339 adjusted cubic feet (ACF). Required control package sold separately.
If you see a lower price on the Mr. Steam MS Super 1E steam generator, call us, and we'll match it, plus 10% of the difference!
The Mr. Steam MS Super 1E is engineered for home steam rooms up to 339 adjusted cubic feet (ACF).
The steam unit includes a stainless-steel tank, industrial-grade and fully serviceable heating elements, full-port drain valve, electronic water-level control system, LED color indicators for self-diagnostics, and a variety of other features.
When engineering this generator, Mr. Steam focused on providing the most consistent bathing experience. The MS Super 1E generator is constructed of durable stainless steel throughout and runs off an advanced microprocessor platform.
The unit is equipped with Mr. Steam's unique AutoSteam water temperature equalization chamber which ensures a continuous steam production. The MS Super 1E uses less than two gallons of water for a typical 20-minute steam bathing session, making it both eco-conscious and economical.
The compact MS Super 1E steam shower unit can be installed up to 60 feet away from the steam room, even on another floor. Typical installation locations include closets, cabinets, and vanities. The generator is perfect for residential and smaller commercial applications.
The optional Express Steam feature includes a built-in thermostat that that maintains water temperature so that you may start steaming quickly.
The Mr. Steam MS-SUPER 1E 10kW steam generator is available in 208V (MSSUPER1EB1) and 240V (MSSUPER1EC1) single-phase (1PH) configurations. MS-e Series generators are available in a variety of power ratings to best suit your needs.
The MS Super 1E requires the use of an available Mr. Steam control or control package for operation. Controls allow you to adjust steam shower functionality such as temperature and duration.
We recommend Mr. Steam's Auto Flush Automatic Draining System with your MS Super 1E. The automatic Auto Drain system automatically cleans the generator tank after each bathing session to help prevent mineral build-up and to ensure the longevity of the unit.
The MrSteam MS Super 1E steam bath generator carries a limited lifetime warranty and is fully serviceable. All Mr. Steam residential steam generators are made in the USA. MS generators are US and Canadian UL listed and CE and NOM certified for your safety.
SteamSaunaBath is proud to be an authorized Mr. Steam partner and offer the best steam showers from Mr. Steam for homes and health clubs.
We guarantee the lowest price. If you see this steam shower for sale at a lower price, give us a call, we'll match it! See our guaranteed lowest price policy for details.
SteamSaunaBath is the bathing environment expert. We specialize in sauna and steam room design, sales, installation, maintenance, and repair services. Our half-century of hands-on experience means that we are uniquely qualified to ensure the success of your bathing space and an unparalleled steam bathing experience. Contact a SteamSaunaBath technical bathing specialist to help you build your steam room: (800) 707-2862.
- For steam baths sized from 258 to 339 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
- 10kW Steam bath generator, 17"L x 7-7/8"W x 18-3/4"H
- Installation and operation manual
- Limited warranty
| Model | MS SUPER-1E |
|---|---|
| Minimum Adjusted Cubic Feet | 258 |
| Maximum Adjusted Cubic Feet | 339 |
| Shipping Weight (Lbs.) | 40 lbs |
| Kilowatt Rating (KW) | 10.0 KW |
| Electrical Specifications | (refer to Electrical chart) |
| Water Supply Connection | 3/8" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1/2" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 17" |
| Depth | 7-7/8" |
| Height | 18-1/2" |

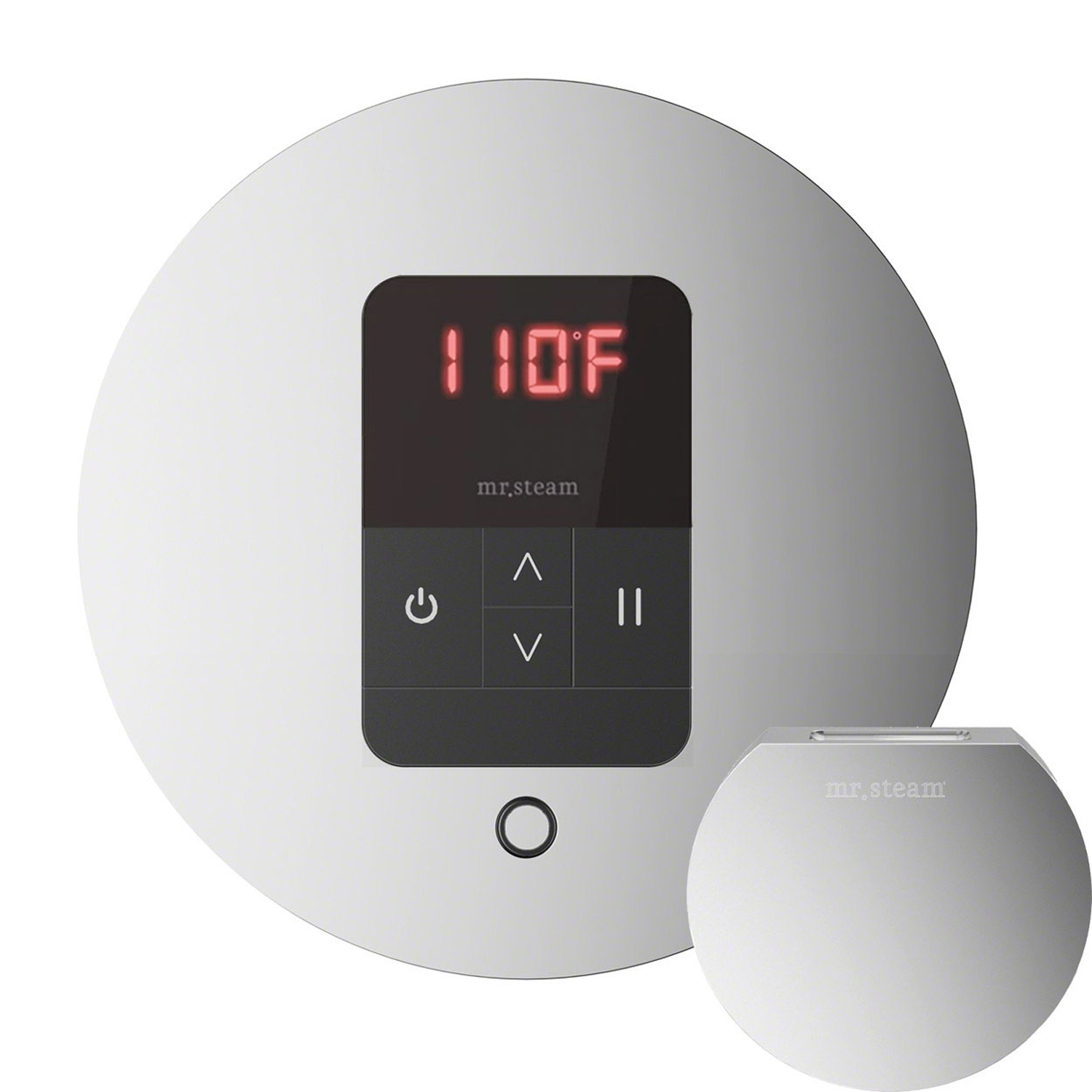

The digital iTempo 60-minute steam shower control from Mr.Steam provides programmable temperature control. The iTempo features a soft touch key pad and easy-to-read digital readout display and is compatible with the SteamLinx mobile control module.
Comes with matching designer finish aroma steam head.

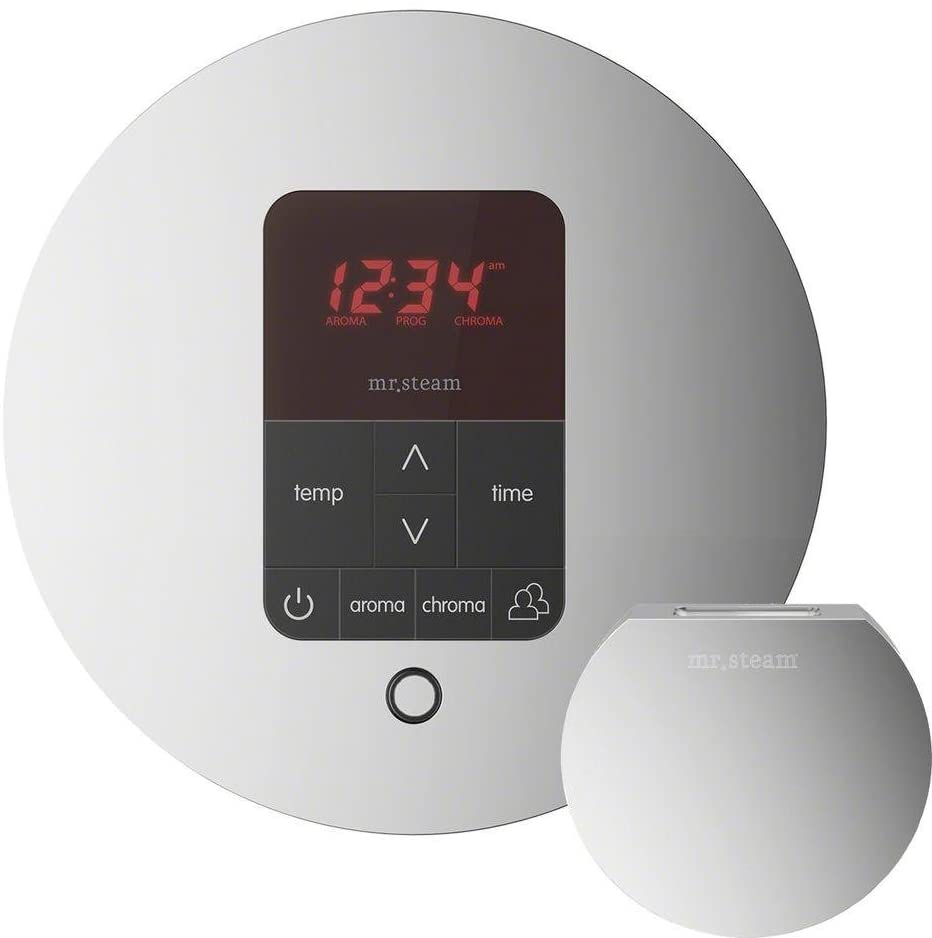

The digital iTempoPlus control provides programmable temperature control, time duration, personalized temperature settings, on/off, and control of aroma and lighting. The iTempoPlus features a soft touch key pad and easy-to-read digital readout display and is compatible with the SteamLinx mobile control module.
Comes with matching designer finish aroma steam head.

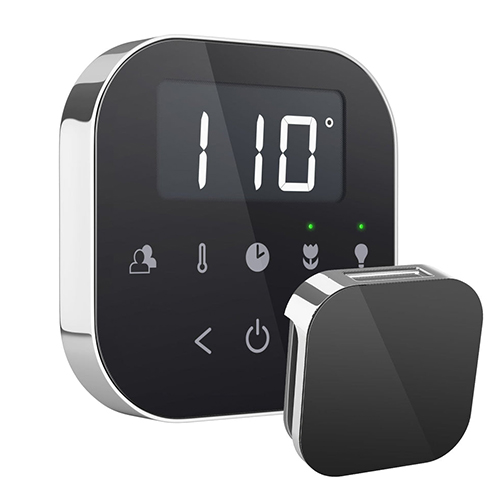

No cables, no wires, and no hassle— the Mr. Steam AIRT control package is an easy-to-use and convenient way to control the steam shower.

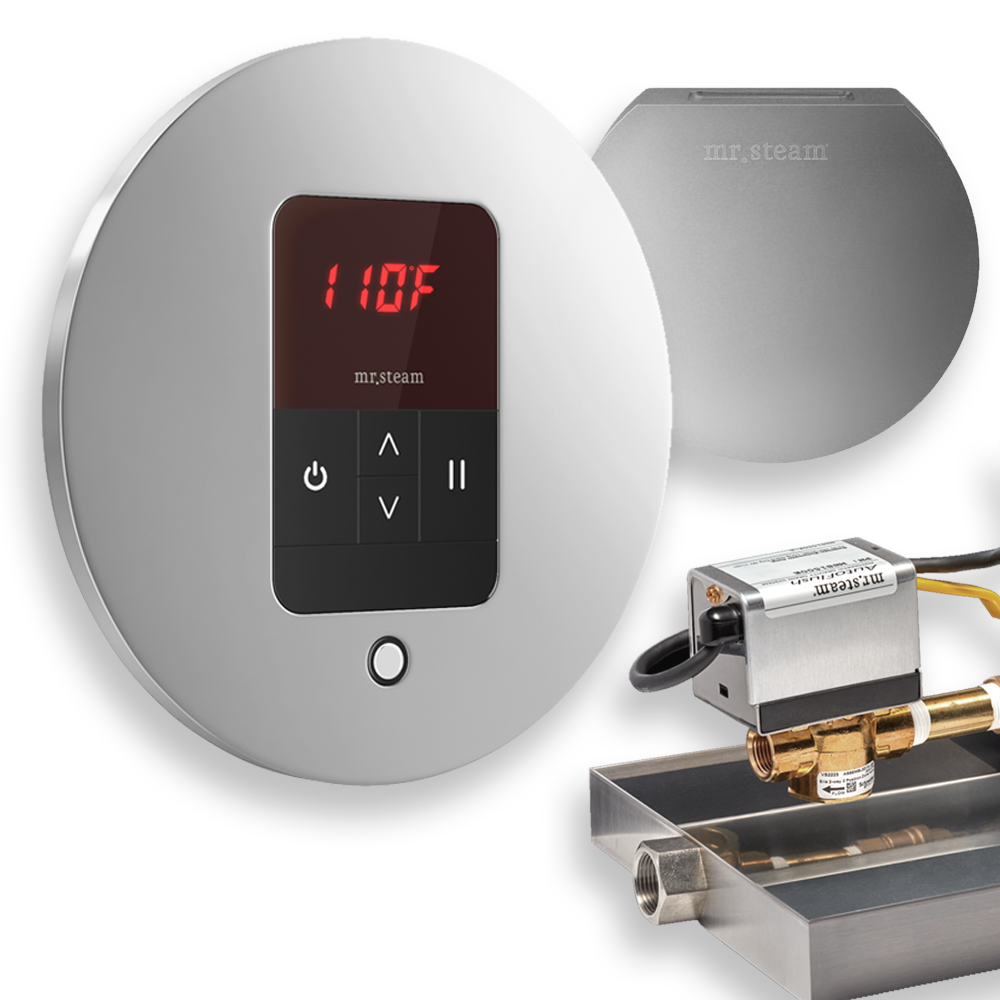

The Mr.Steam Basic Butler Steam Shower Package (BBUTLER) is compatible with the MS and Super Series generators and includes an iTempo steam shower control with matching finish steam head, autoflush automatic drain system, and condensation drain pan.

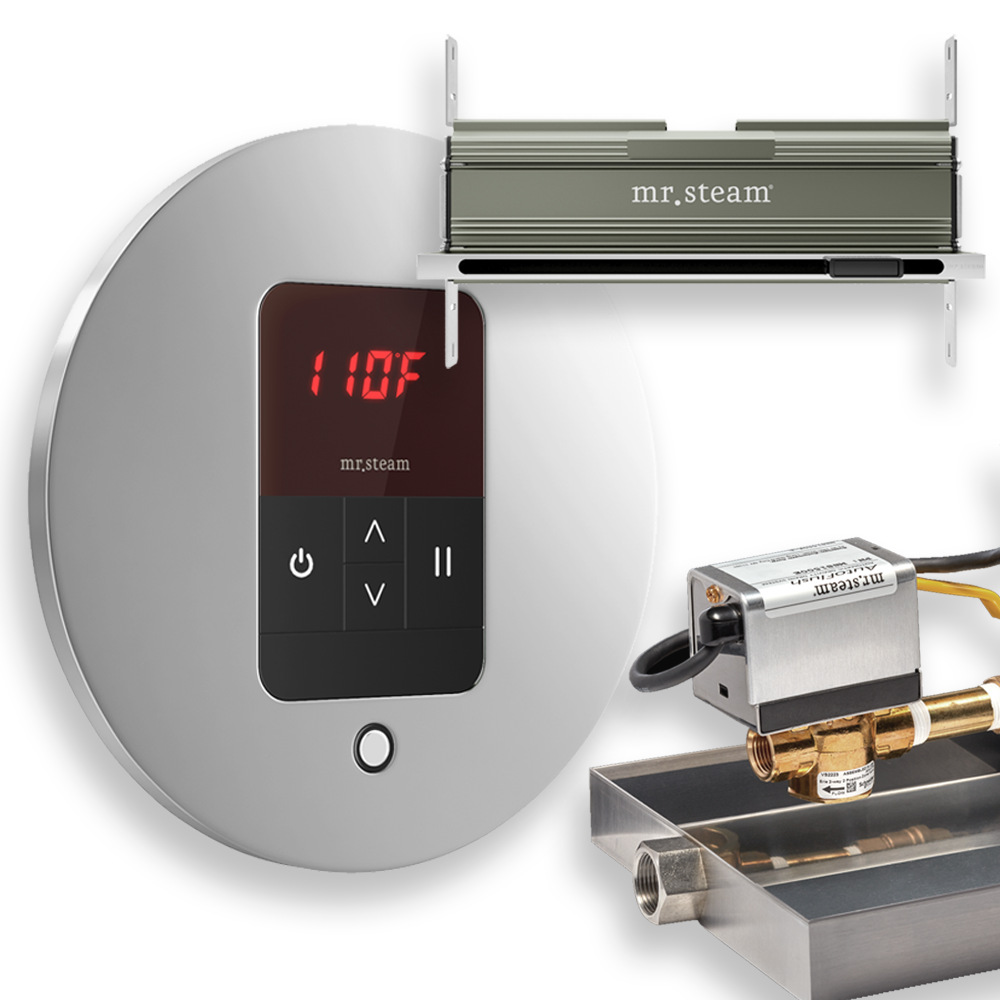

The Basic Butler Linear (BBUTLERL) Steam Shower Operating Package, for MS and SUPER Series steam shower generators, contains an MS iTempo operating control with matching-finish linear steam head, automatic drain valve, and drain pan for an enhanced the steam bathing experience.

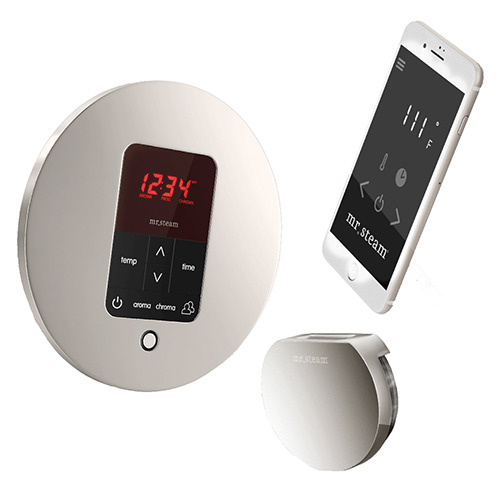

The Butler Steam Shower Operating Package from Mr.Steam for MS-E and SUPER-E Series generators contains your choice of round or square iTempo PLUS operating control with a matching-finish steam head, remote-start SteamLinx app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.

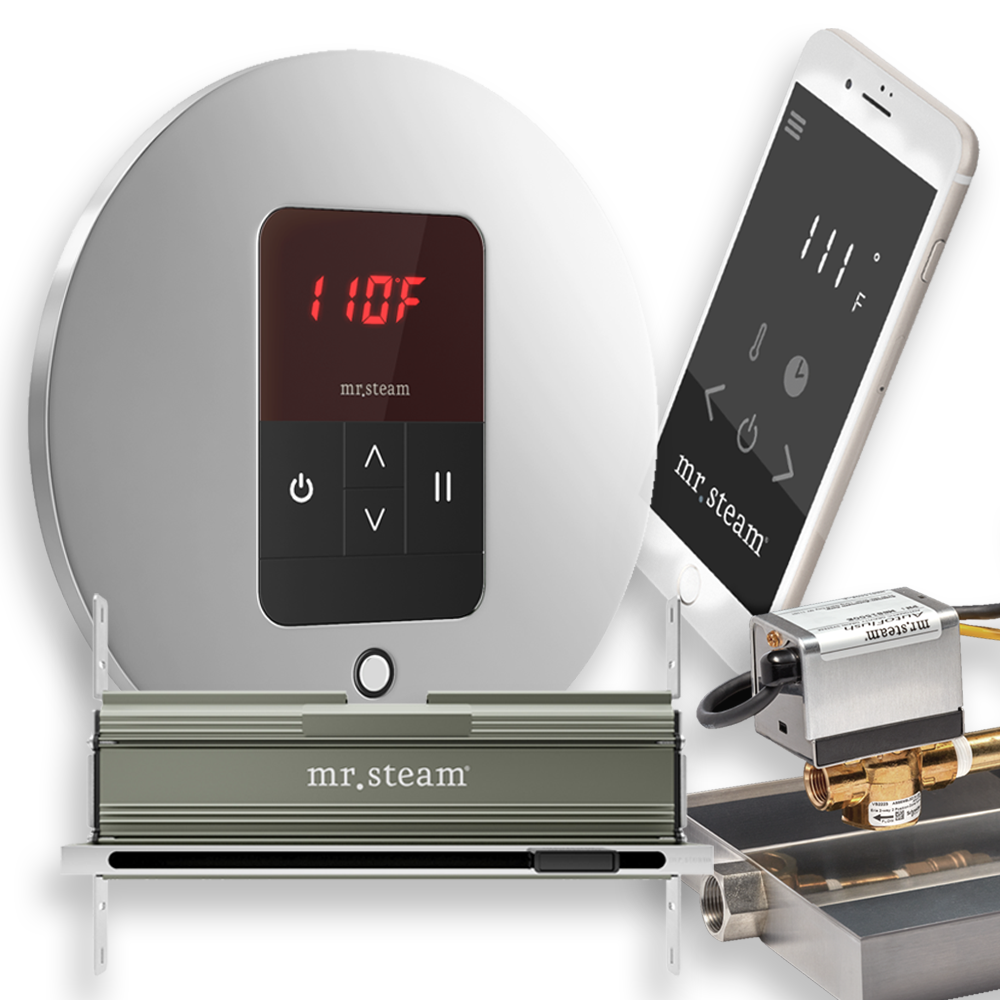

The Butler Steam Shower Operating Package (BTLRL1) for MS and SUPER Series generators contains an MS iTempo operating control with matching-finish linear steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.

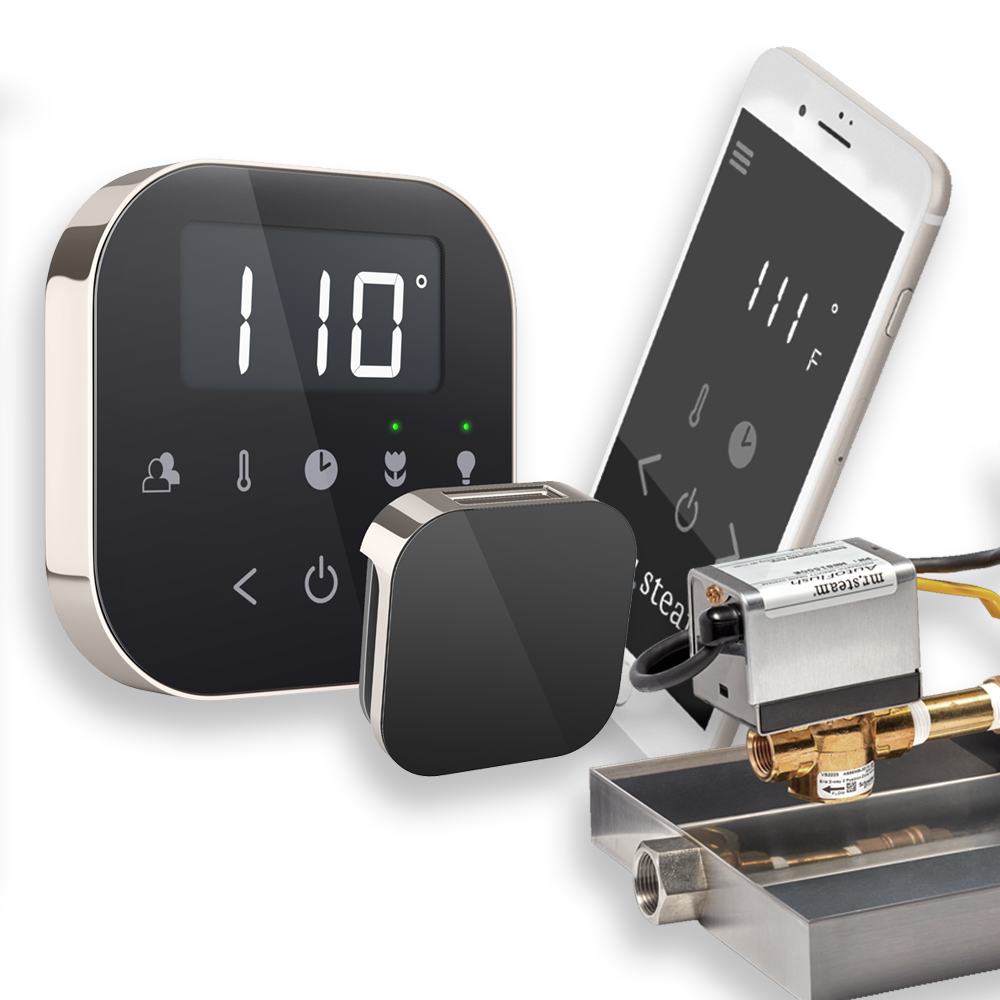

The ABUTLER1 Steam Shower Operating Package for MS/SUPER Series generators contains an AirTempo operating control with matching finish steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.

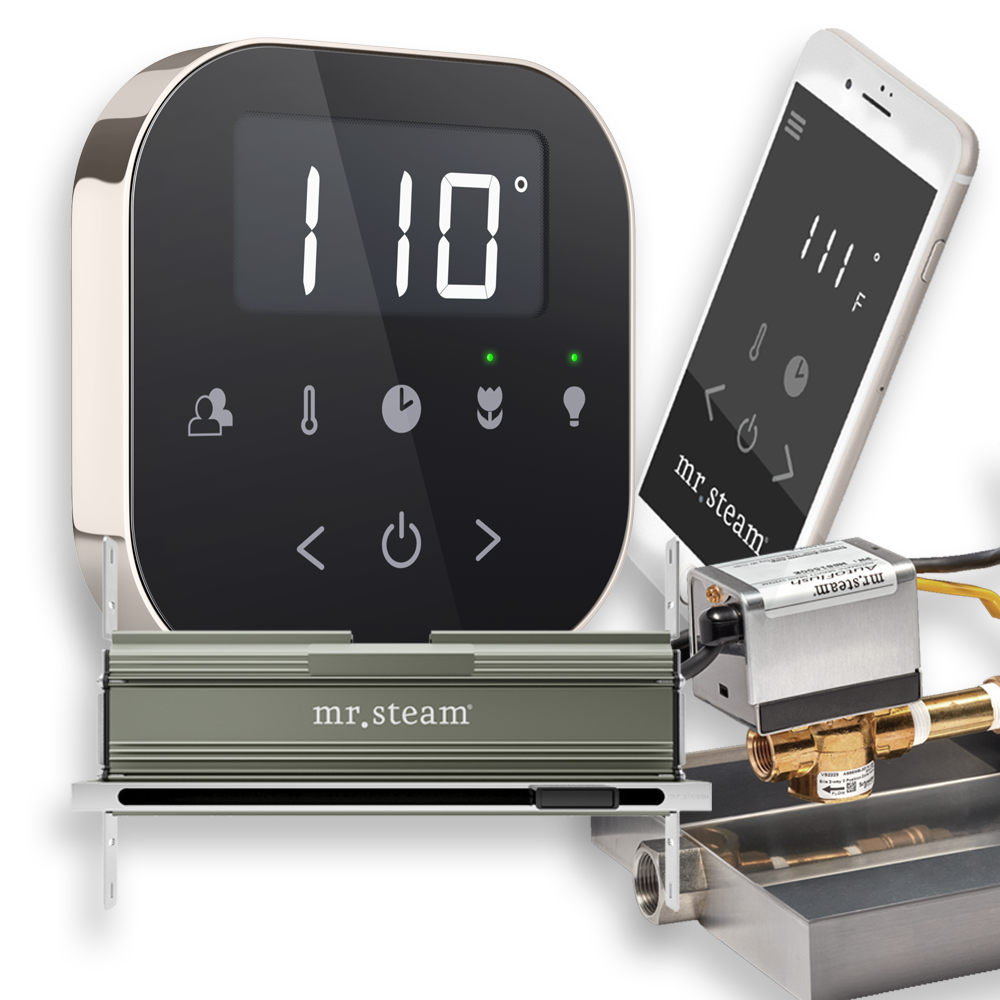

The AirButler Steam Shower Operating Control Package for MS and SUPER Series steam shower generators contains an AirTempo operating control with matching-finish linear steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
Award-winning and truly innovative, this Linear Steam Head for MS90–MSSUPER3 generators is the quietest of its kind. Installed flush with the wall, this Steam Head can be installed so only a slim opening remains visible.

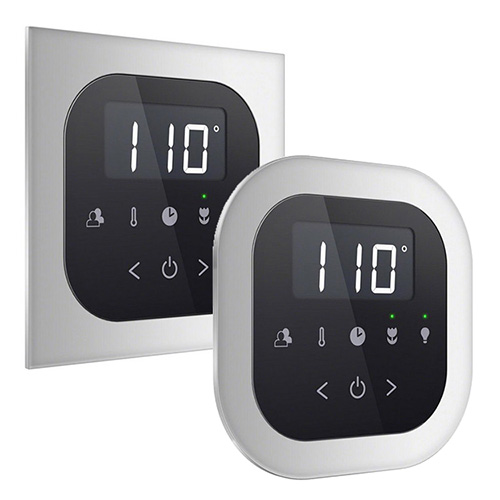

The AirTempo Control can be installed flush to the wall of your shower or steam room using the AirTempo® Flush Mount Kit, which consists of a sleek bezel into which the control snugly fits. The AirTempo® Flush Mount kit is a great solution if you’re covering a hole left behind by your old steam shower control.
Available in Black or White fascia with Polished Chrome trim or five designer finishes to match any project: Brushed Bronze, Brushed Nickel, Polished Brass, Polished Nickel, Satin Brass, and Oil Rubbed Bronze.
Must order AirTempo Control separately.

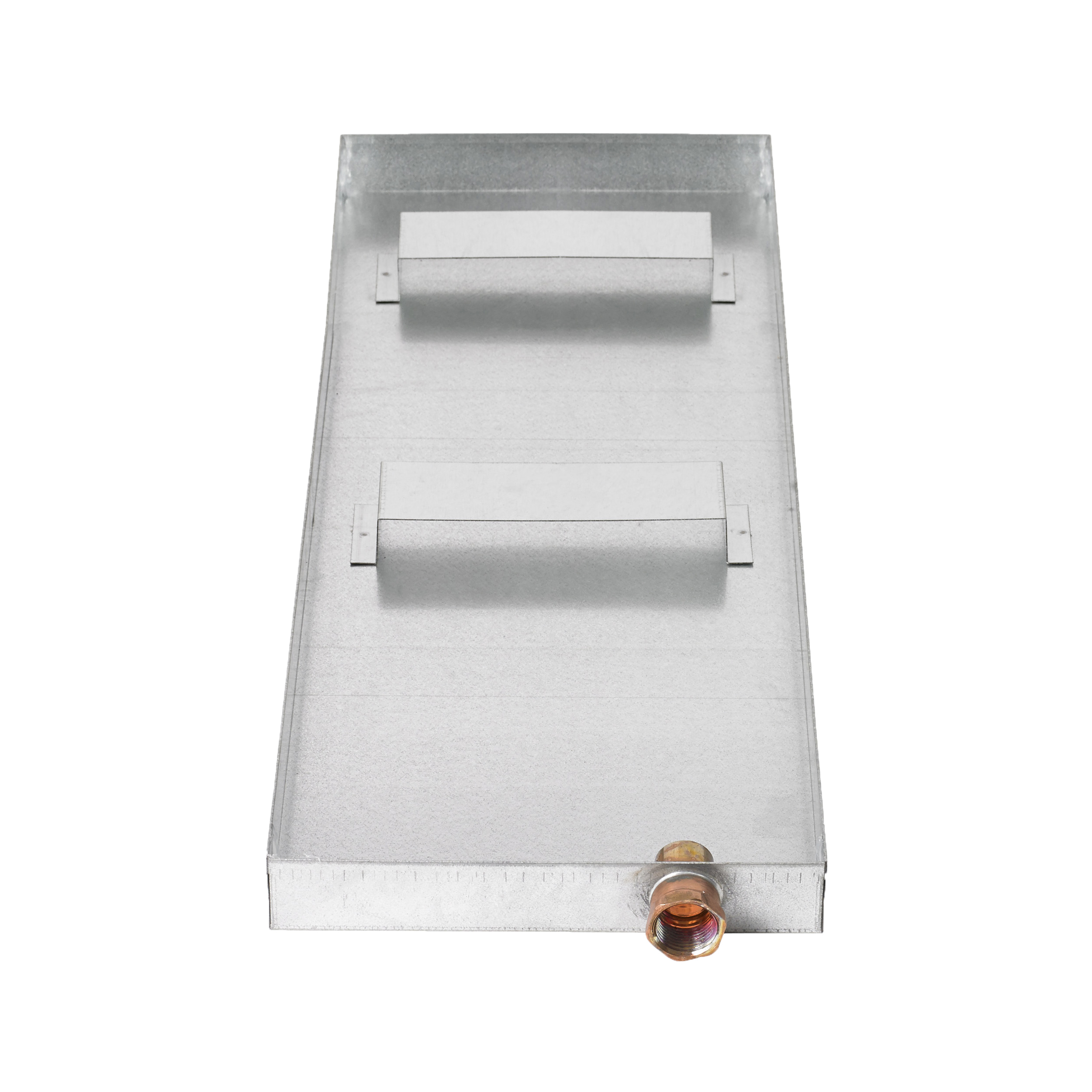

Designed for the unlikely event of a slow water leak, the Mr.Steam Drain Pan installed beneath the MS/SUPER steam generator will aid in the trapping and redirecting of this water to an acceptable and predetermined area.

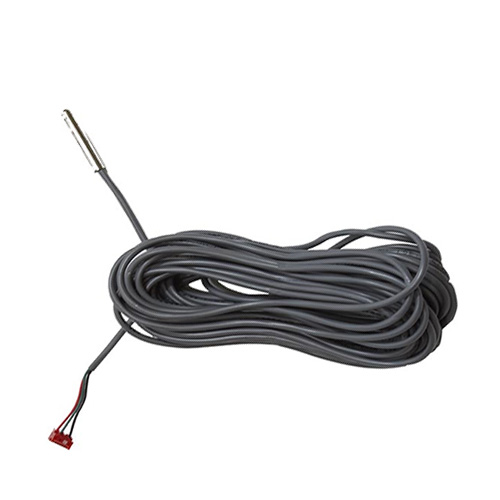

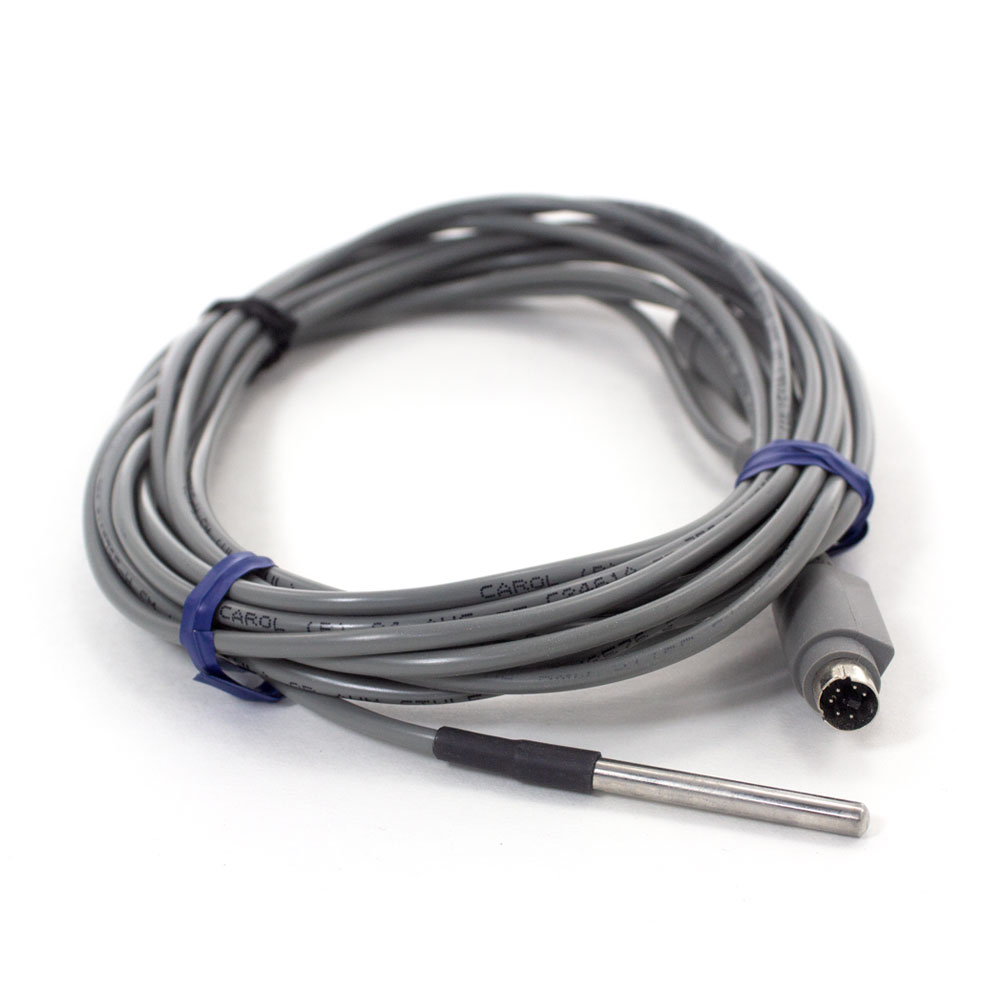

Mr.Steam Temperature Room Sensor with 30 ft Cable is designed for Tempo, eTempo, iTempo, and AirTempo Controls. Note that you cannot use a 30 ft plus a 60 ft cable together.
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.
External Probe, iSteam
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.

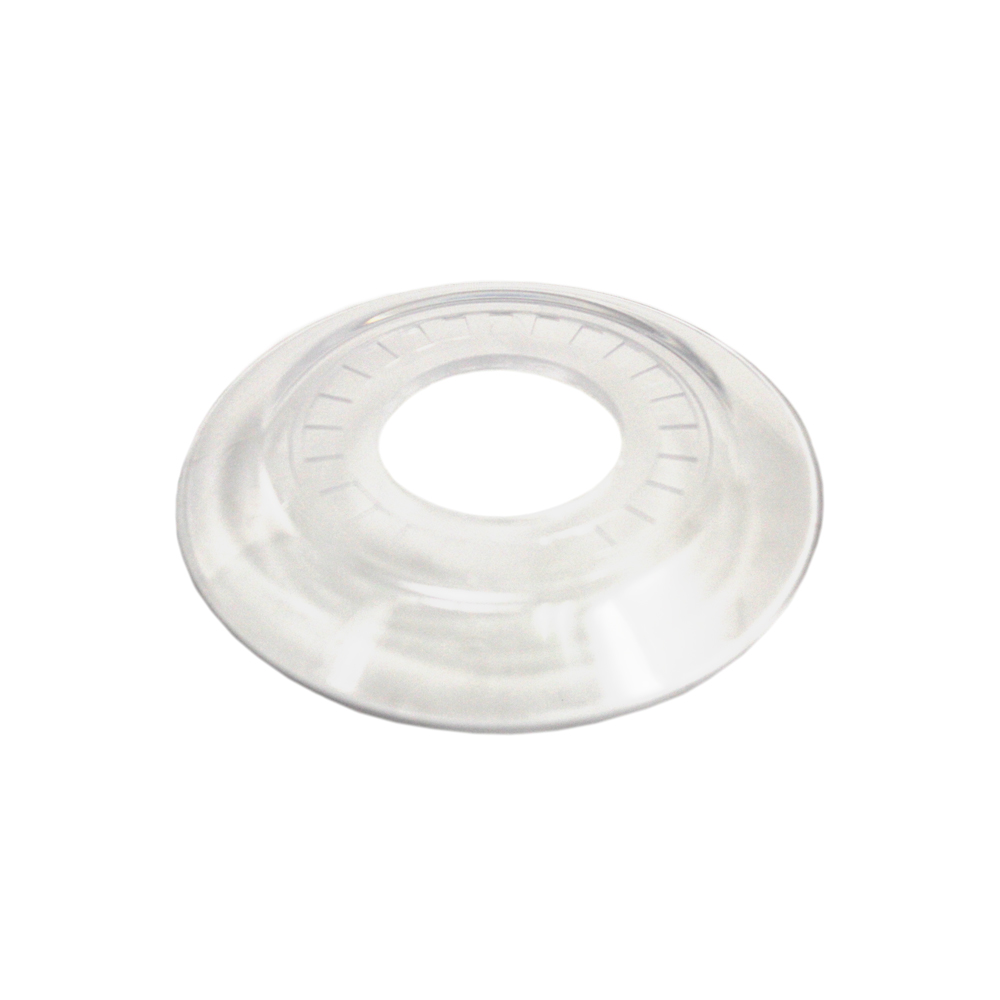

Mounting over the MS 103937 or MS 104040 SteamHead and designed for use when acrylic or other non-heat resistant construction materials are used for steam room enclosure construction, the Mr.Steam Acrylic Shield will aid in diffusing the steamhead heat transfer and redirect the steam-flow. Recommended for steam rooms with minimal floor space, ceiling heights over 8' high and natural stone construction.
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.

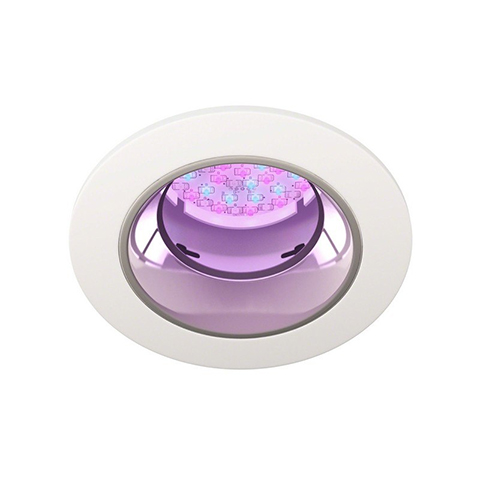

The MrSteam ChromaSteam-72 system suffuses the steam shower with a spectrum of color from airy blue to warm red, allowing you to select the color and modes directly from the AirTempo® or iTempoPlus® Control keypad.

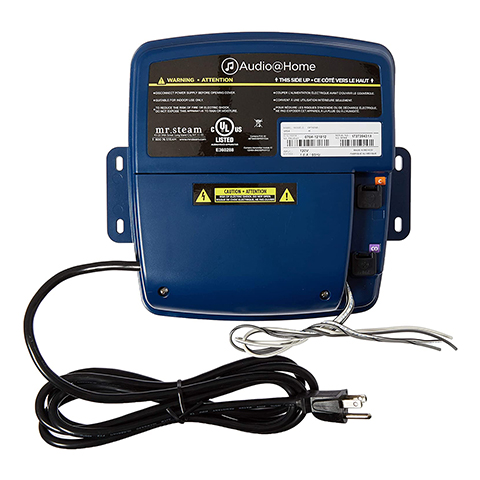

The Mr Steam Audio@Home System is a stand-alone system and does not operate with any of their control packages. It is a Bluetooth device that will work with any Bluetooth device such as a Smartphone or Tablet.

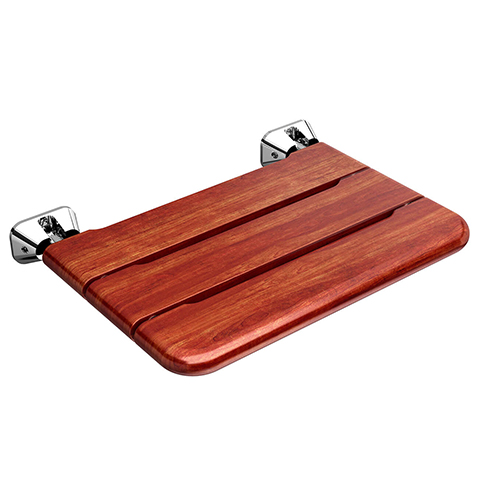

Teak wood, beautifully finished and sealed.

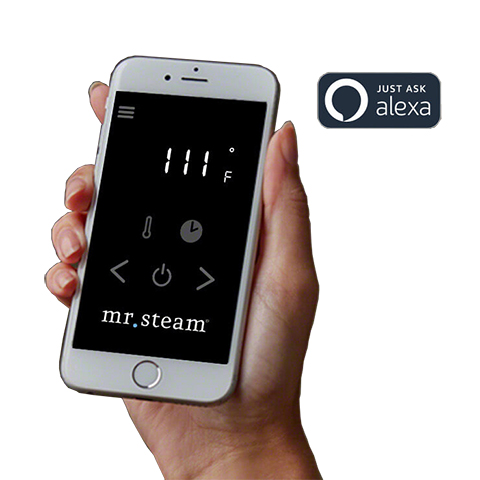

The Mr. Steam Steamlinx System provides wireless control of the steam room from smart phone or mobile device.
Requires use of an iSteam3, AirTempo, iTempoPlus, or iTempo operating control.

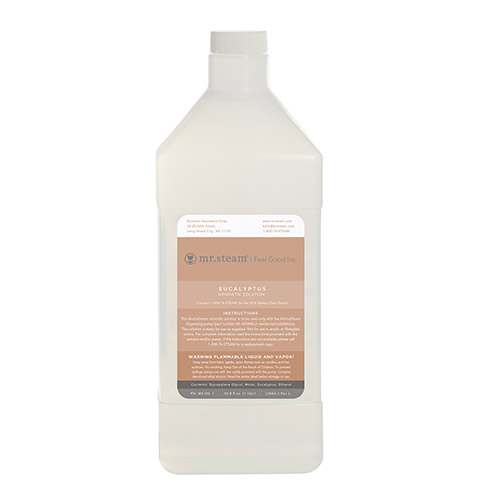

Mr.Steam has carefully created these essential aroma oils that combine with luxurious steam presenting invigorating scents all throughout your steam shower or steam bath enclosure.
Mr.Steam has carefully created these Chakra blend essential aroma oils that combine with luxurious steam presenting invigorating scents all throughout your steam shower or steam bath enclosure.
Mr.Steam has carefully created this pack of essential aroma oils that combine with luxurious steam presenting invigorating scents all throughout your steam shower or steam bath enclosure.
Mr.Steam has carefully created these Chakra blend essential aroma oils that combine with luxurious steam presenting invigorating scents all throughout your steam shower or steam bath enclosure.

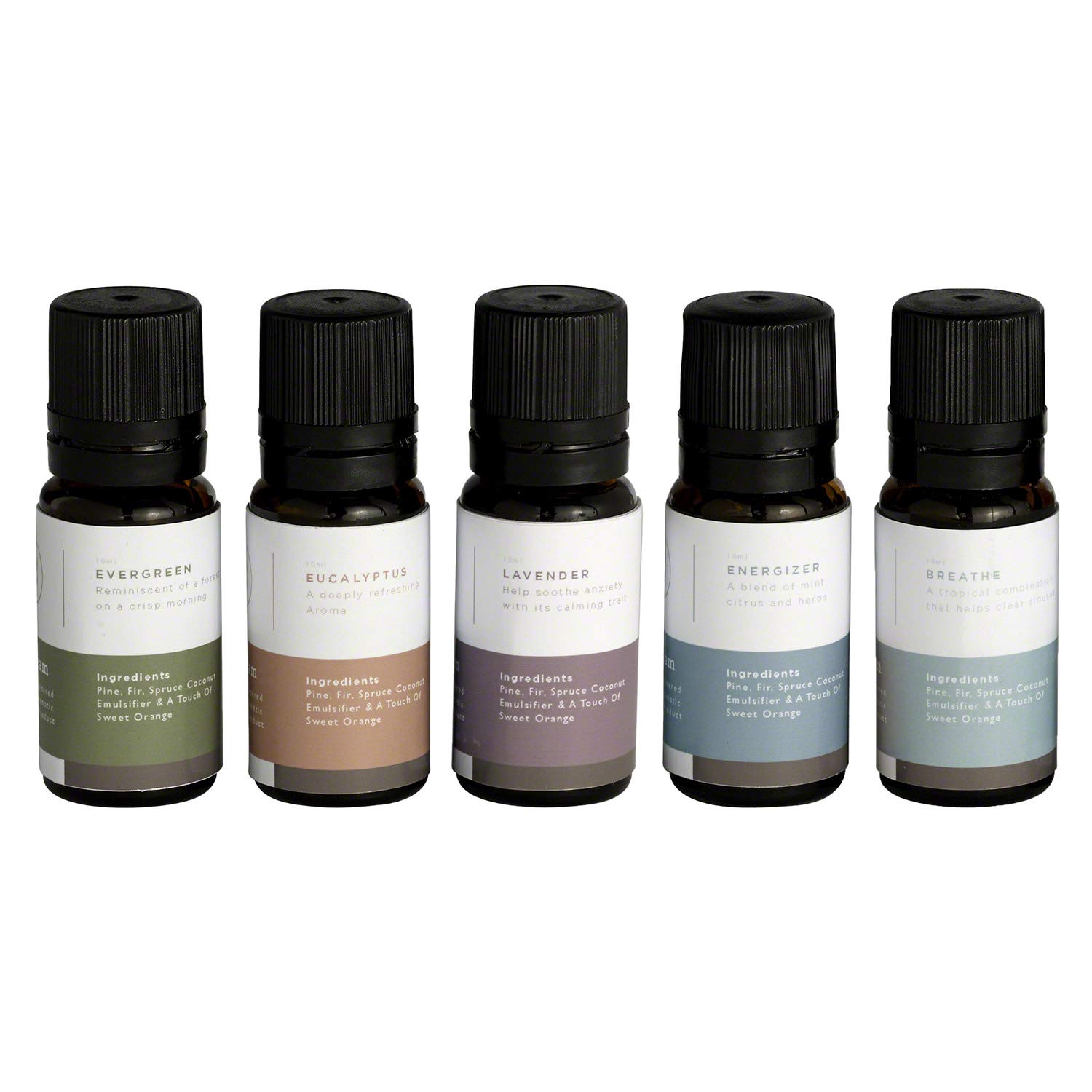

Choose from five essences for whatever mood you’re seeking. Each fragrance comes in a long-lasting 33 oz bottle. Available in Eucalyptus, Lavender, Evergreen, Energizing Mint and Breathe, AromaSteam Oils will leave you rested, rejuvenated and relaxed.
Installed out-of-sight and near your steam bath generator, the AromaSteam electronic oil delivery system will deliver your favorite aroma oil directly into the steam line.

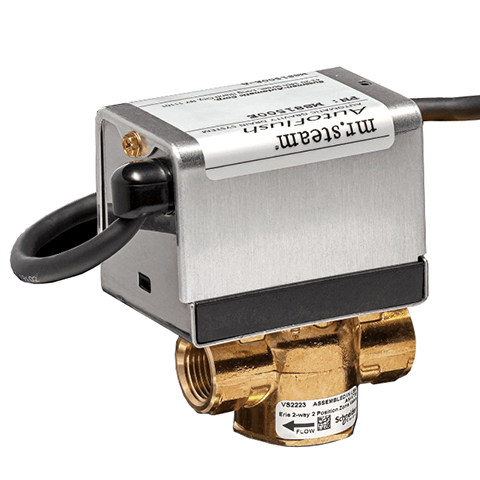

Your steam generator is the most important component of your steam shower. Protect your investment with AutoFlush®. AutoFlush® is a exclusive product. It's an automatic self-cleaning system that promotes a long, healthy life for steam generators by automatically flushing the generator’s sediment two hours after every steambath. We automate everything in the background, so no work is needed after every steam shower session. AutoFlush® assures that you get clean steam every time.
